Wiper Motor Linkage: Service and Repair

WINDSHIELD WIPER LINK AND FRAME REMOVAL/INSTALLATION

1. Remove the cowl grille.
2. Remove the windshield wiper arm and blade.

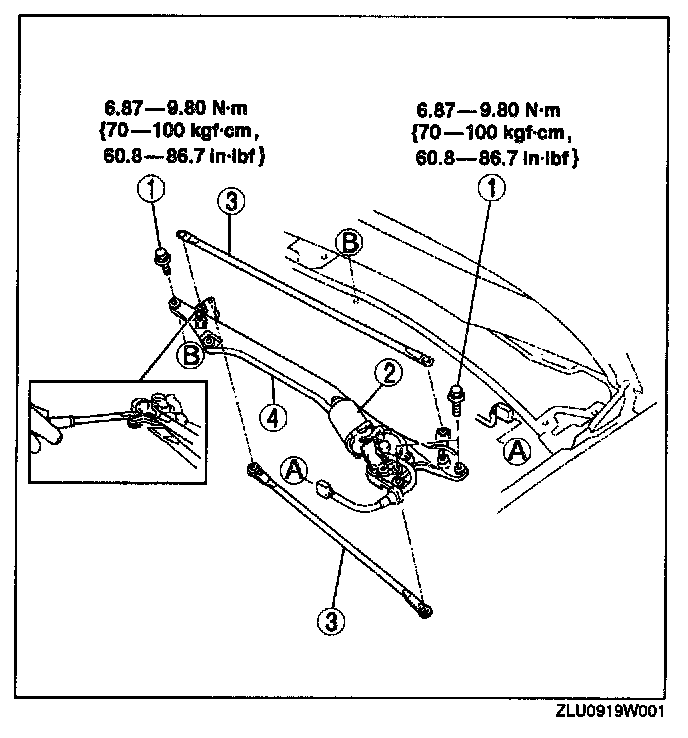

3. Remove in the order indicated below.
1. Bolt
2. Windshield wiper motor
3. Windshield wiper link
4. Windshield wiper frame

4. Install in the reverse order of removal.
