Brake Pedal Assy: Service and Repair

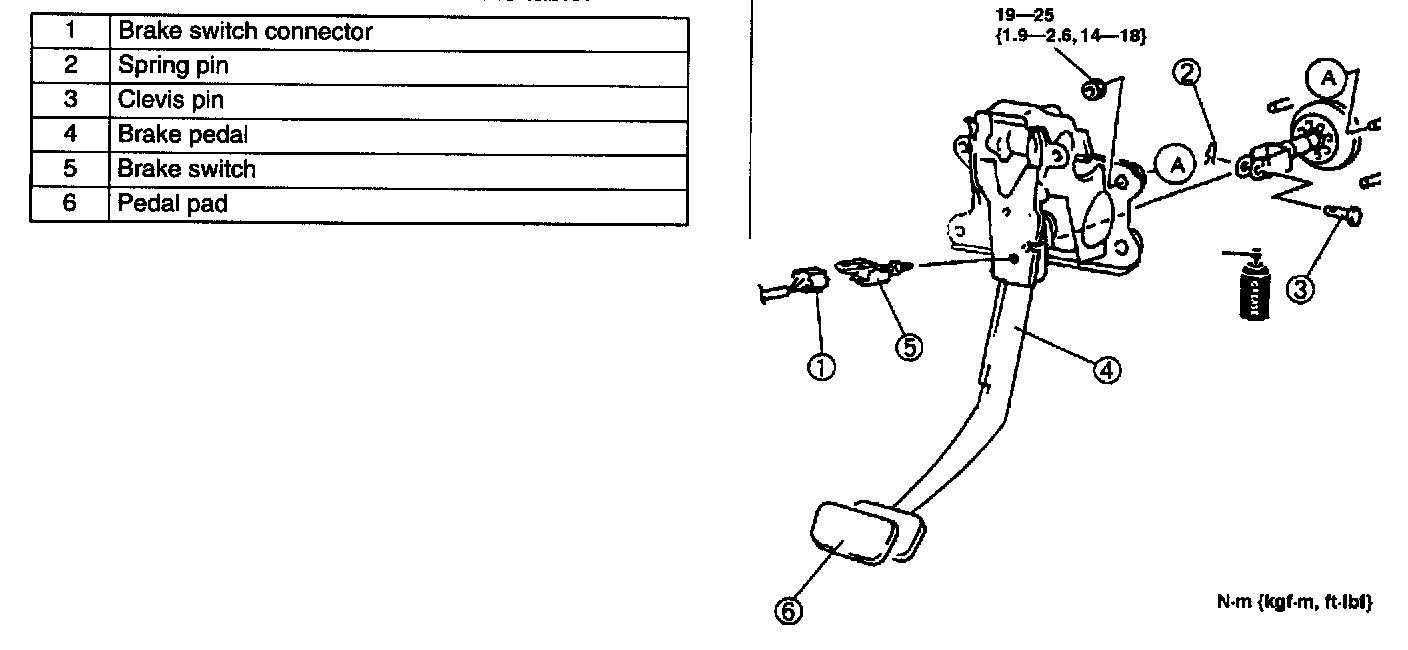

BRAKE PEDAL REMOVAL/INSTALLATION





1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
