Windshield Washer Reservoir: Service and Repair

WINDSHIELD WASHER TANK REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Partially peel off the right side mud guard.
3. Partially remove the right side front bumper (if equipped with washer fluid-level sensor).

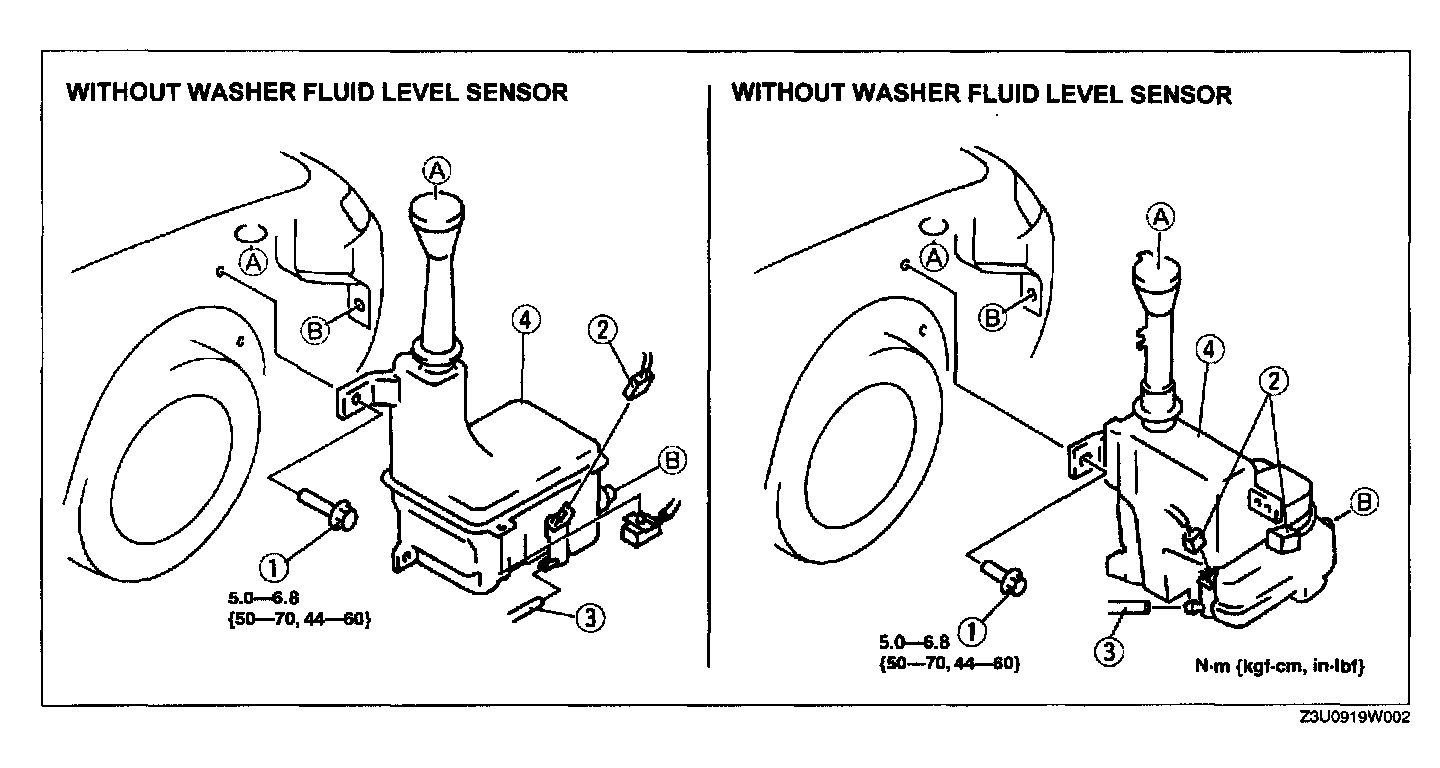

4. Remove in the order indicated below.
1. Bolt
2. Connector
3. Windshield washer hose
4. Windshield washer tank

5. Install in the reverse order of removal.
