Canister Purge Control Valve: Testing and Inspection

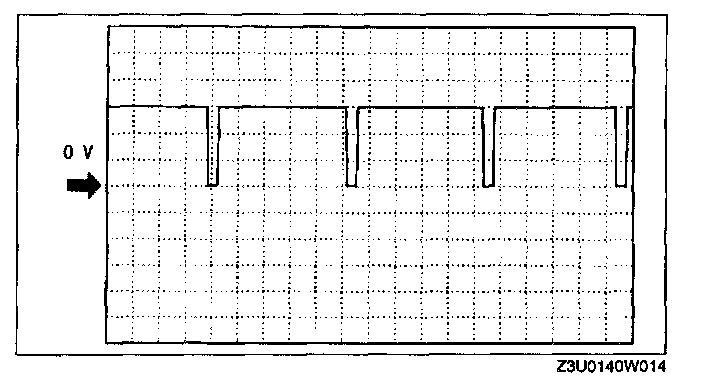

Purge control signal
- PCM terminal: 67(+) - 103(-)
- Oscilloscope setting: 4 V/DIV(Y), 20 ms/DIV(X), DC range
- Vehicle condition: idle after warm up
