A-2 - Starting System (ATX)
A-2 - Starting System (ATX)

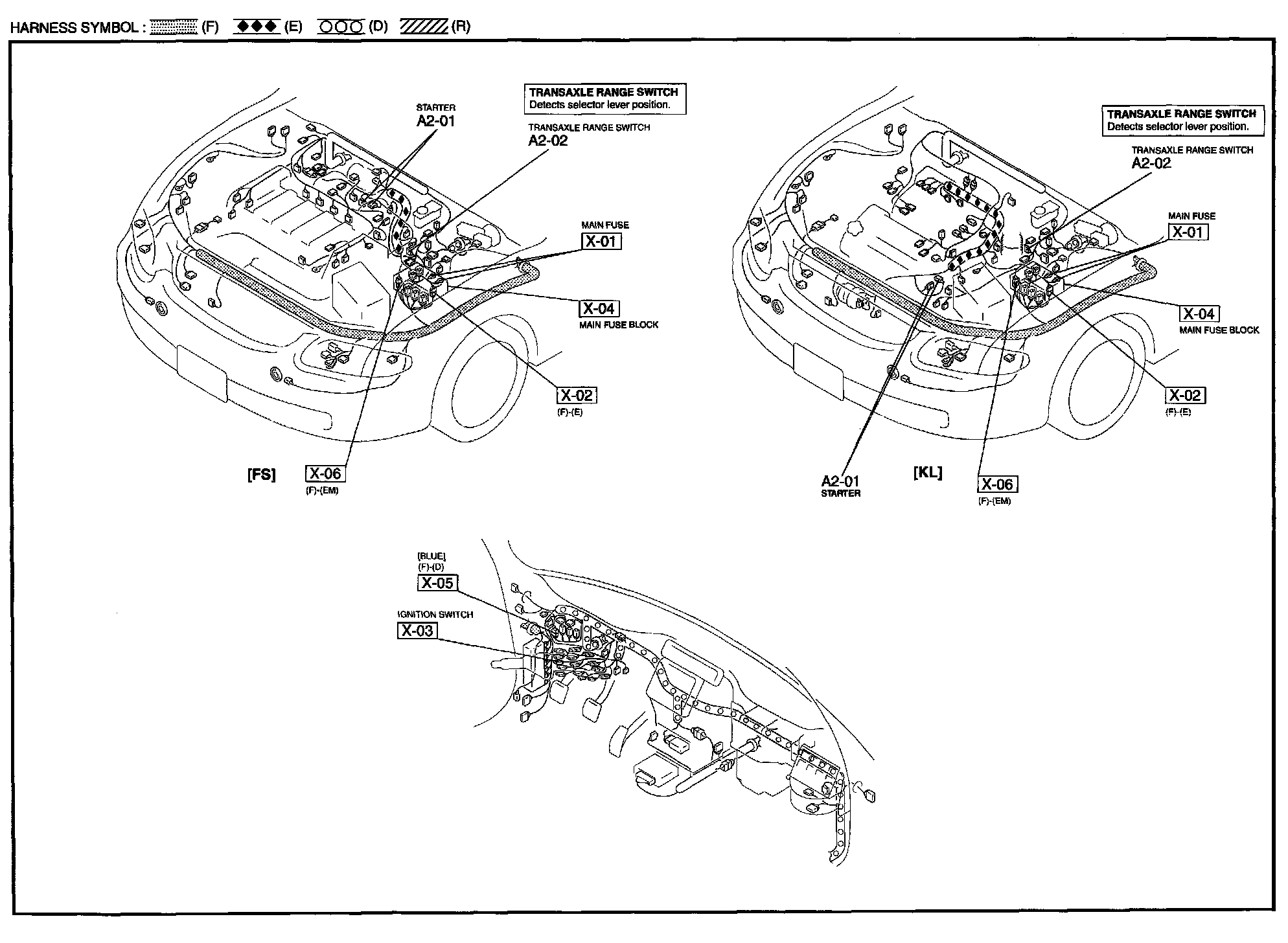

A-2 - Starting System (ATX) Harness/Connector Symbols:
