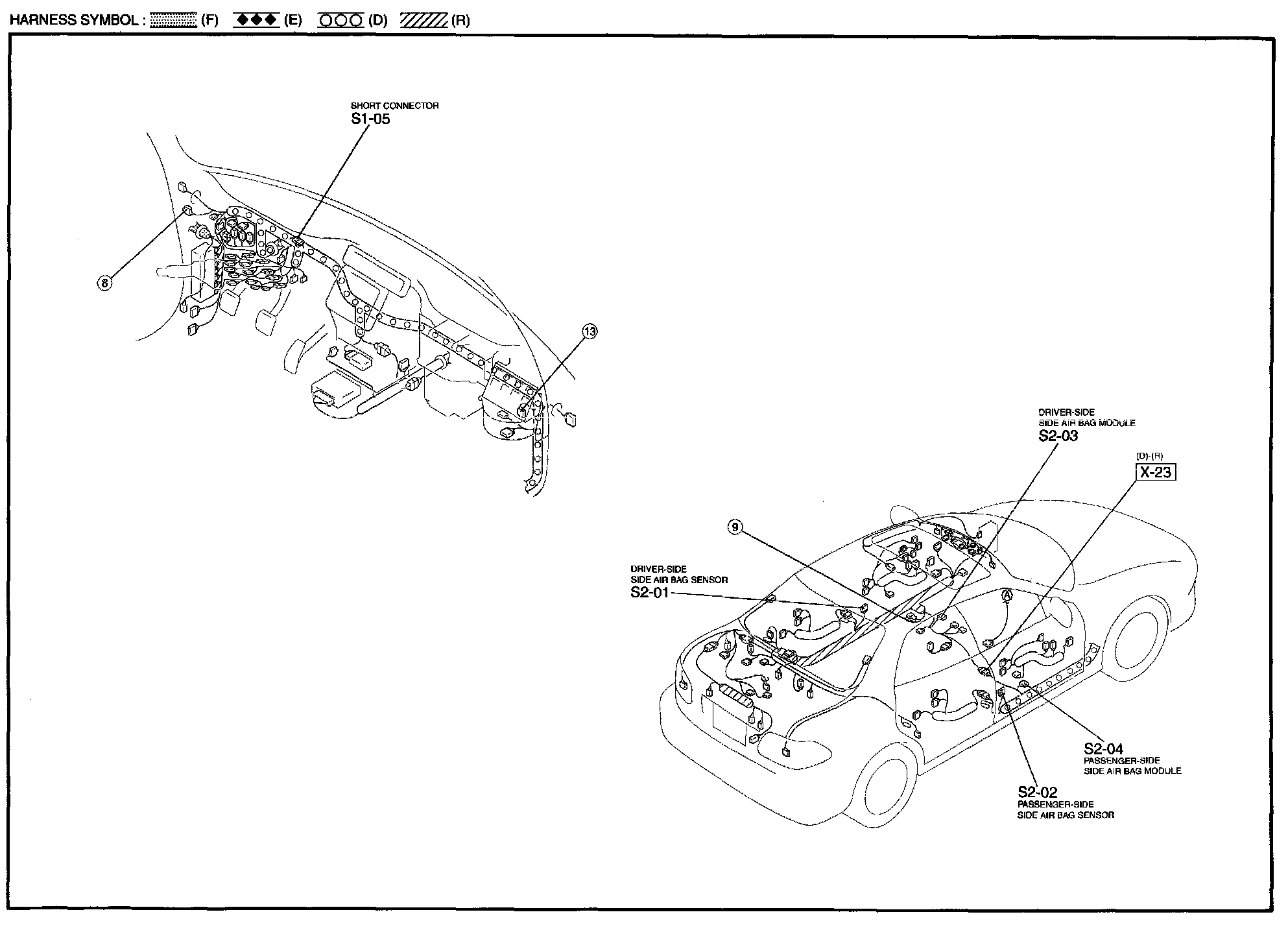

S-2 - Side Air Bag System
S-2 - Side Air Bag System
S-2 - Side Air Bag System Harness/Connector Symbols:
