Accelerator Pedal: Service and Repair

ACCELERATOR PEDAL REMOVAL/INSTALLATION

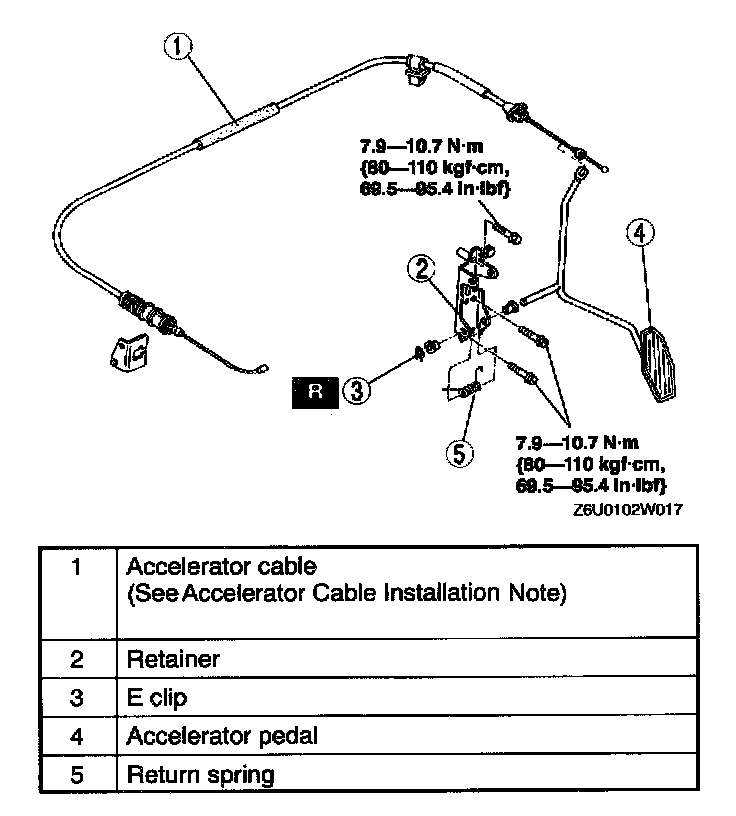

Without Cruise Control
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

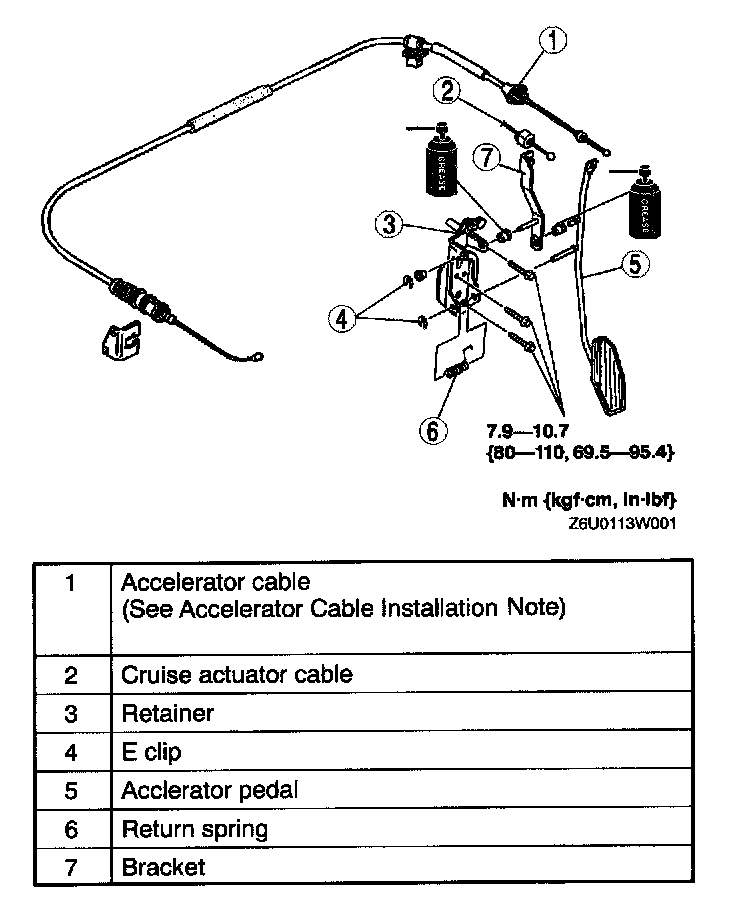

With Cruise Control
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

Accelerator Cable Installation Note
- Carry out the "ACCELERATOR CABLE ADJUSTMENT" procedure after installing the accelerator cable.
