Front

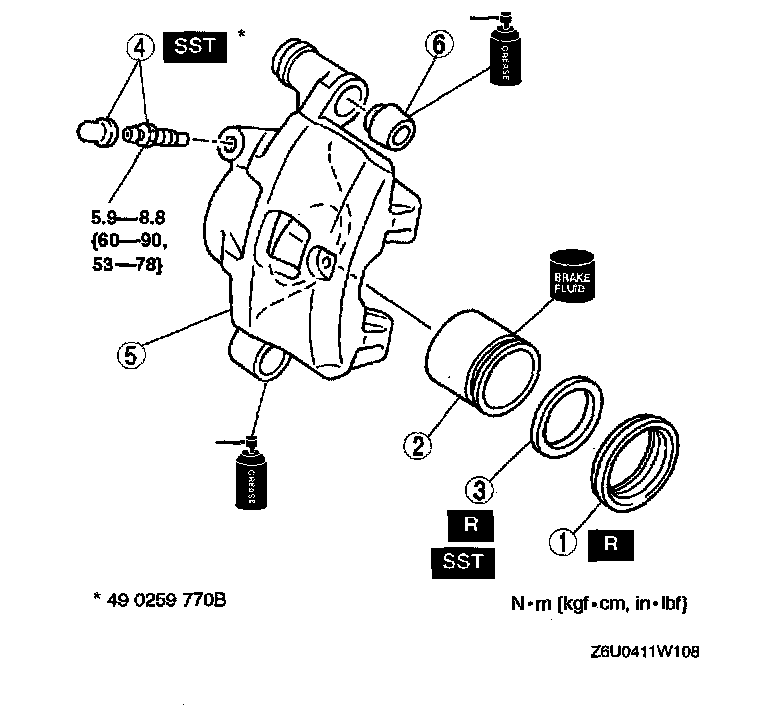

FRONT CALIPER DISASSEMBLY/ASSEMBLY





1 of 2





2 of 2

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Piston Disassembly Note

Caution:
^ Blow the compressed air slowly to prevent the piston from suddenly popping out.

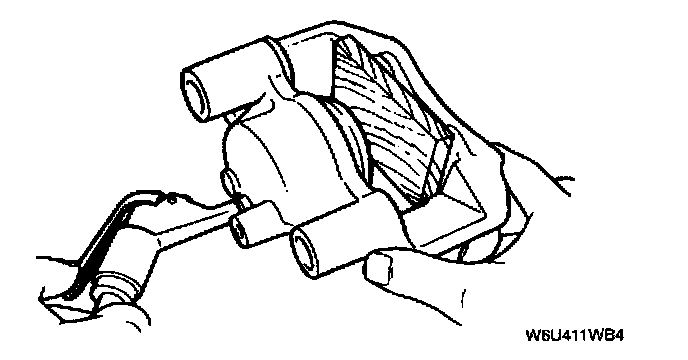

^ Place a piece of wood in the caliper, then blow compressed air through the hole to force the piston out of the caliper.





Piston Seal Disassembly Note
^ Remove the piston seal from the brake caliper by using the SST.
