Brake Proportioning/Combination Valve: Service and Repair

DUAL PROPORTIONING VALVE REPLACEMENT

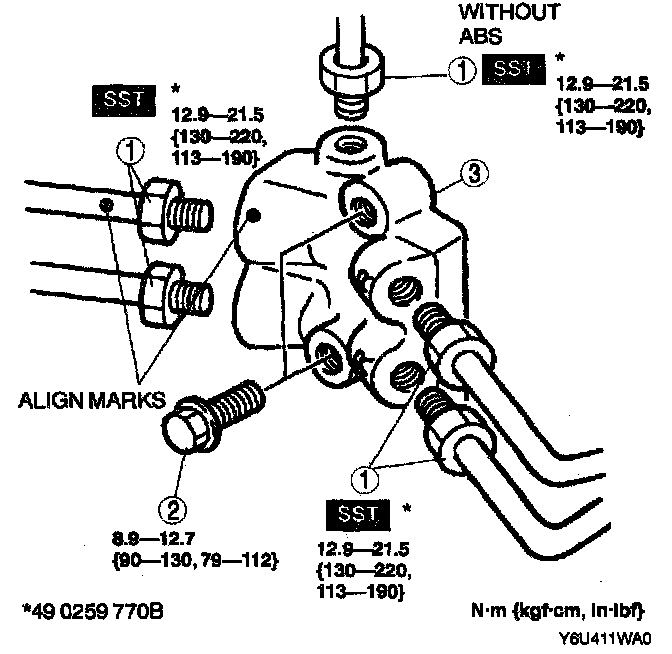

1 of 2





2 of 2

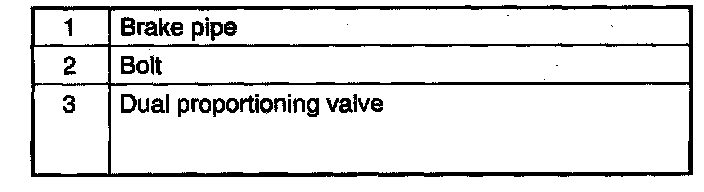

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.





Dual Proportioning Valve Installation Note

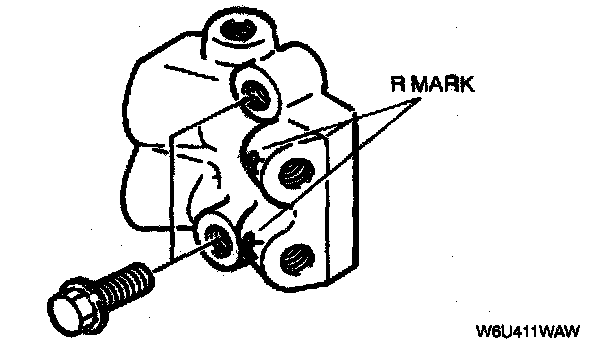

^ Install the dual proportioning valve so that the R mark faces right side of the vehicle.
