Heated Glass Element: Description and Operation

Defroster control operation
- The defroster control starts when the DEFROSTER or HEAT/DEF switch is turned on. When the defroster control starts, air intake mode and A/C ON/OFF are controlled based on the input signal of each switch.

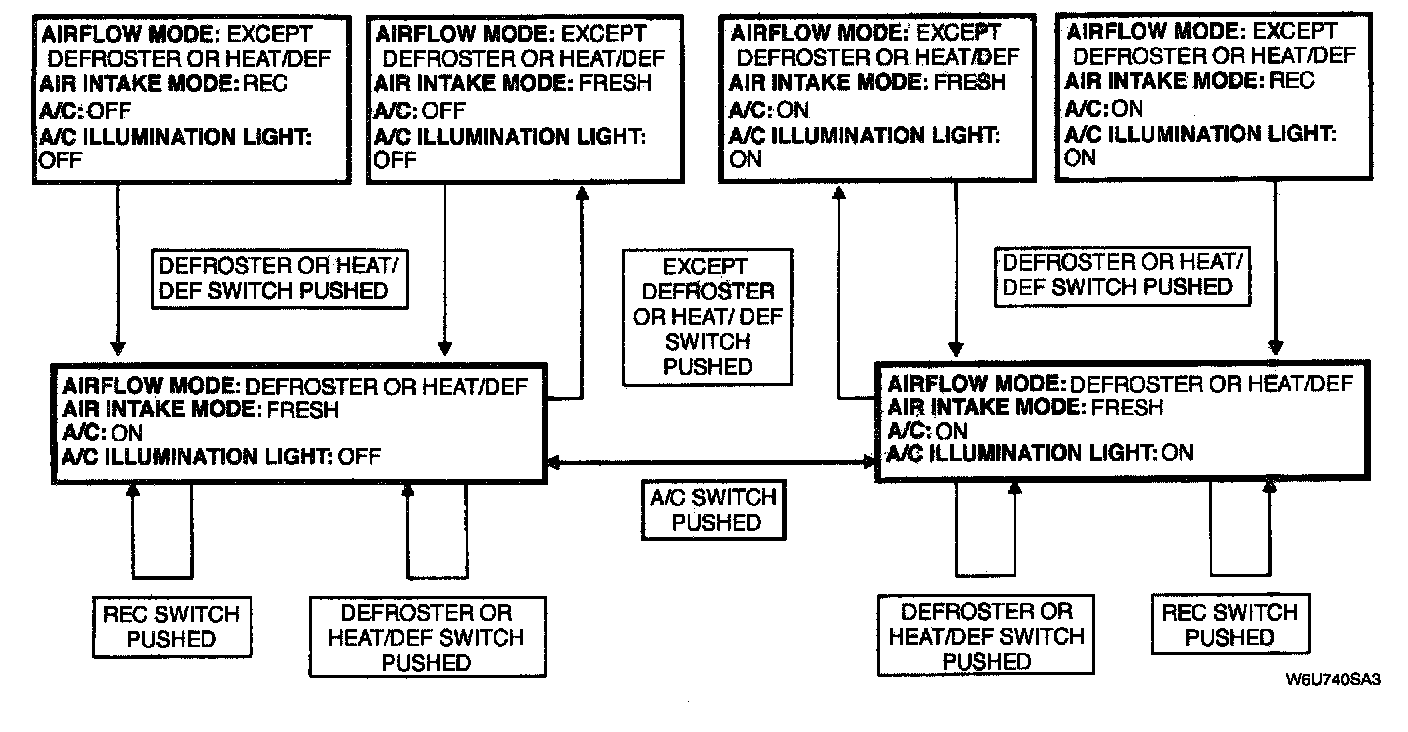

- The transition of air intake mode and A/C ON/OFF when the defroster control operates is as shown.
