Windshield Washer Reservoir: Service and Repair

WINDSHIELD WASHER TANK REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Partially peel off the right side mud guard.

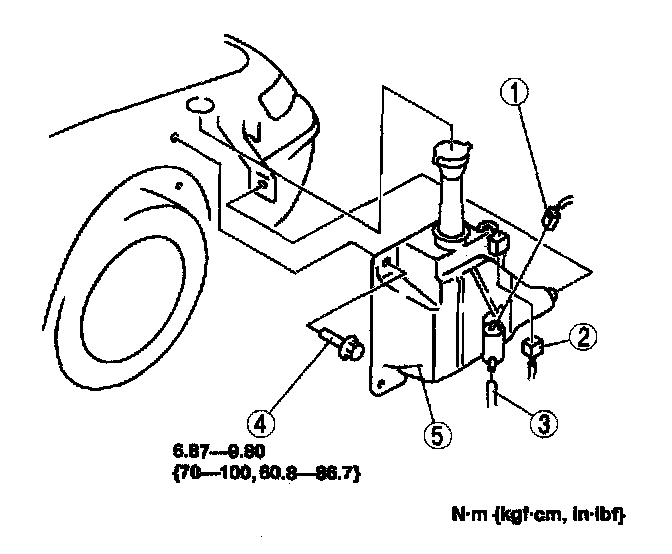

3. Remove in the order indicated below.
1. Windshield washer motor connector
2. Washer fluid-level sensor connector
3. Windshield washer hose
4. Bolt
5. Windshield washer tank

4. Install in the reverse order of removal.
