Brake Proportioning/Combination Valve: Service and Repair

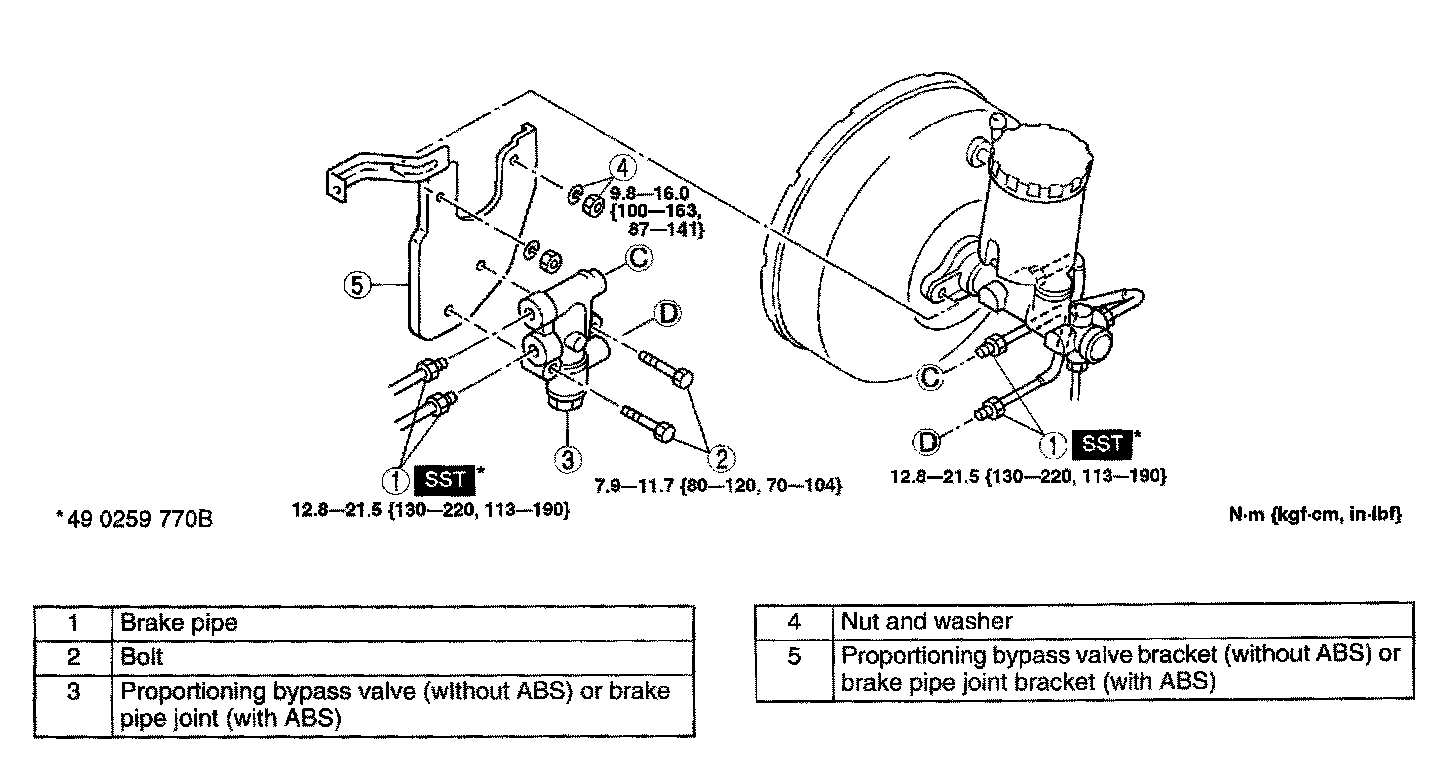

PROPORTIONING BYPASS VALVE (WITHOUT ABS) OR BRAKE PIPE JOINT (WITH ABS) REPLACEMENT
1.
Remove in the order indicated in the table.
2.
Install in the reverse order of removal.
