Idle Speed/Throttle Actuator - Electronic: Service and Repair

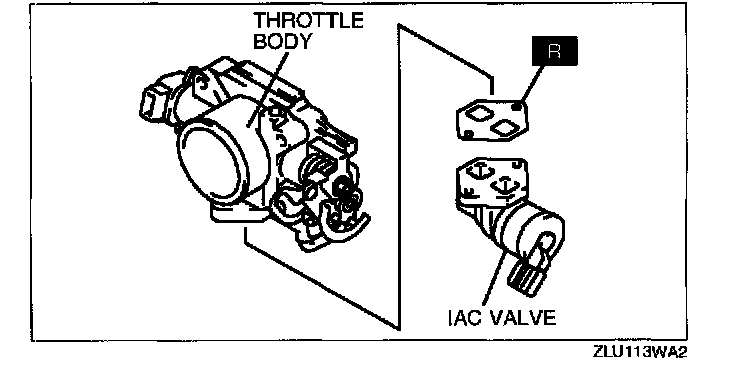

IDLE AIR CONTROL (IAC) VALVE REMOVAL/INSTALLATION




1. Remove the throttle body component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)
2. Remove the IAC valve.
3. With a new gasket, install in the reverse order of removal.

Tightening torque: 2.9 - 4.0 N.m {2.41 kgf.cm, 2.35 in.lbf}
