Rear Bumper: Service and Repair

REAR BUMPER REMOVAL/INSTALLATION

4SD
1. Disconnect the negative battery cable.
2. Remove the rear combination lights.

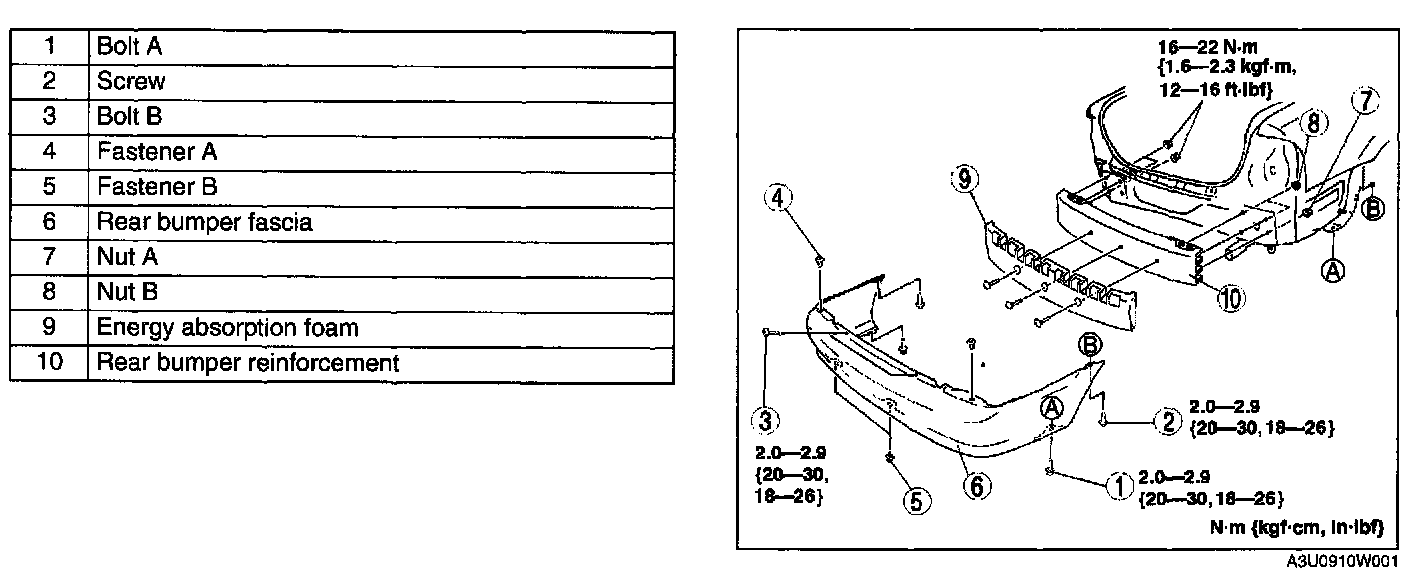

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.






5HB
1. Disconnect the negative battery cable.
2. Remove the rear combination lights.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
