Hatch Back

REAR SEAT REMOVAL/INSTALLATION

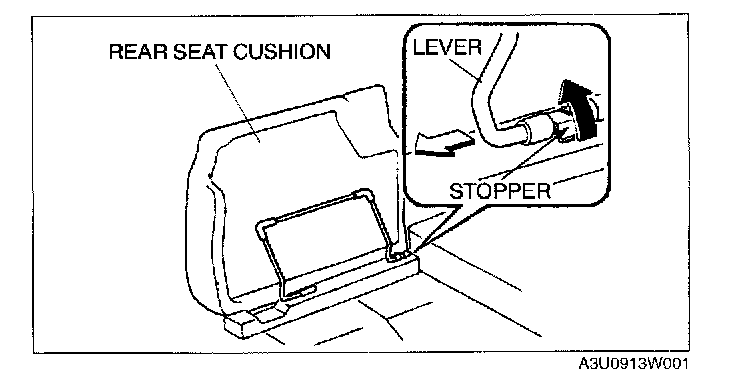

Rear seat cushion




1. Lift up the rear seat cushion.
2. Pull the stopper to release the lever, and remove the rear seat cushion.
3. Install in the reverse order of removal.

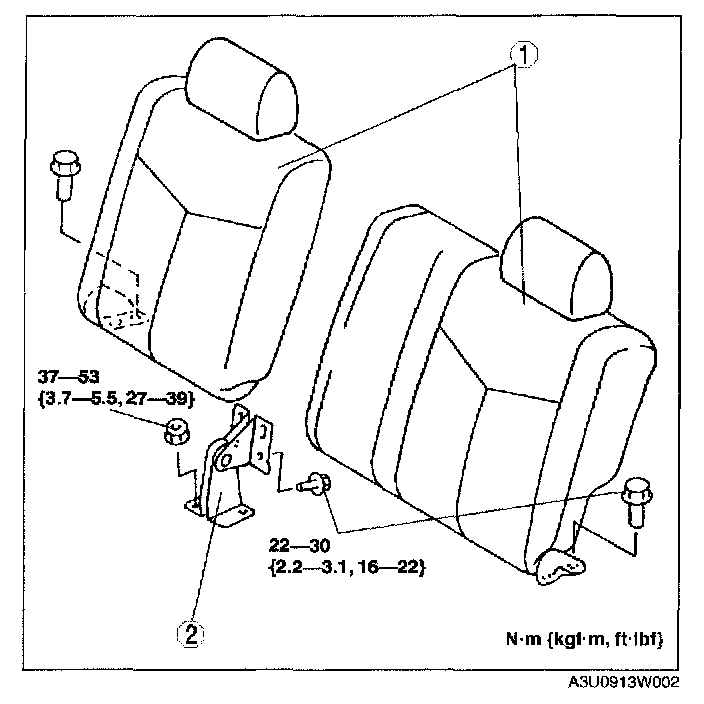

Rear seat back

1. Lift up the rear seat cushion.
2. Remove the service hole cover.




3. Remove in the order indicated below.
1. Rear seatback
2. Center hinge

4. Install in the reverse order of removal.

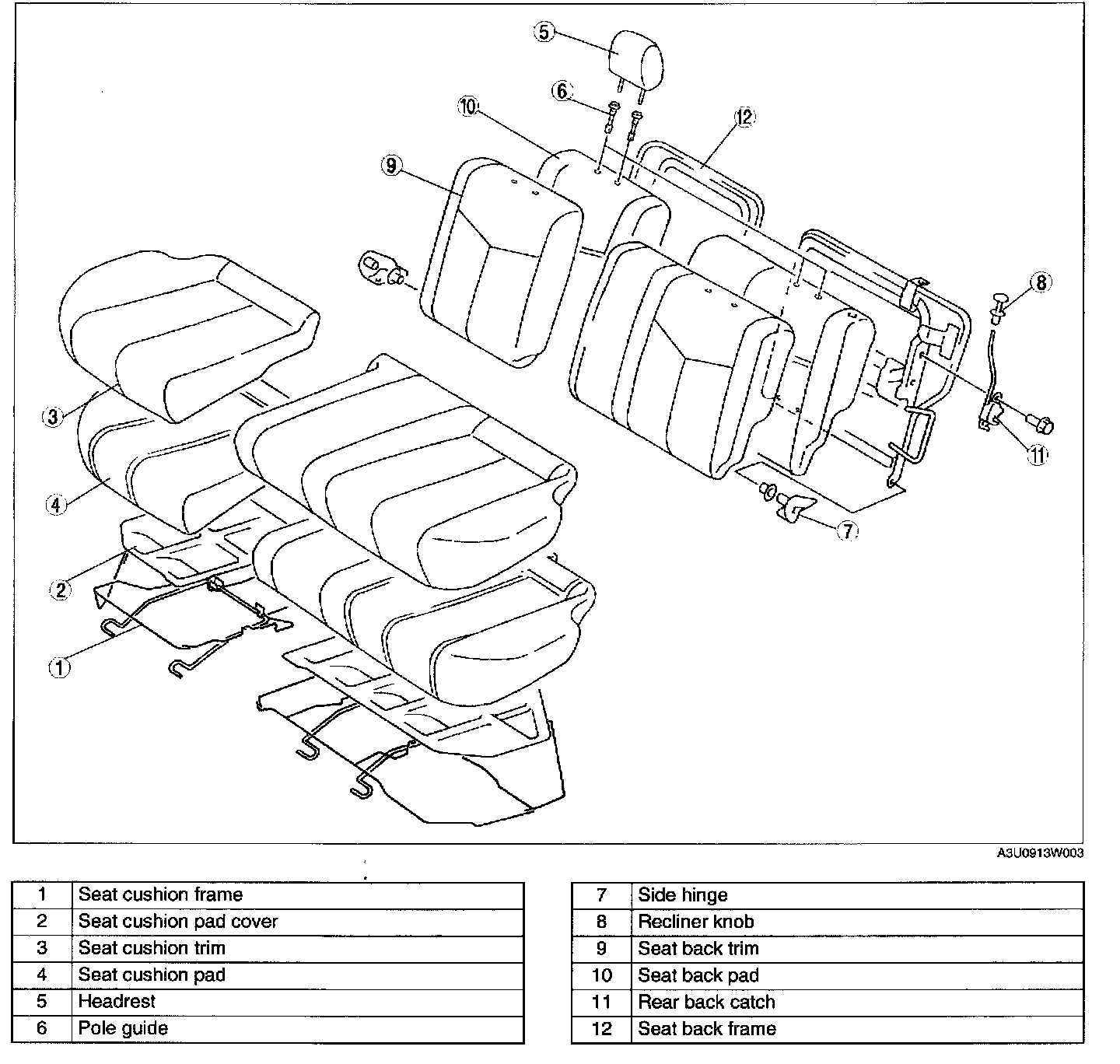

REAR SEAT DISASSEMBLY/ASSEMBLY




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
