Automatic Transaxle Cross-Sectional View

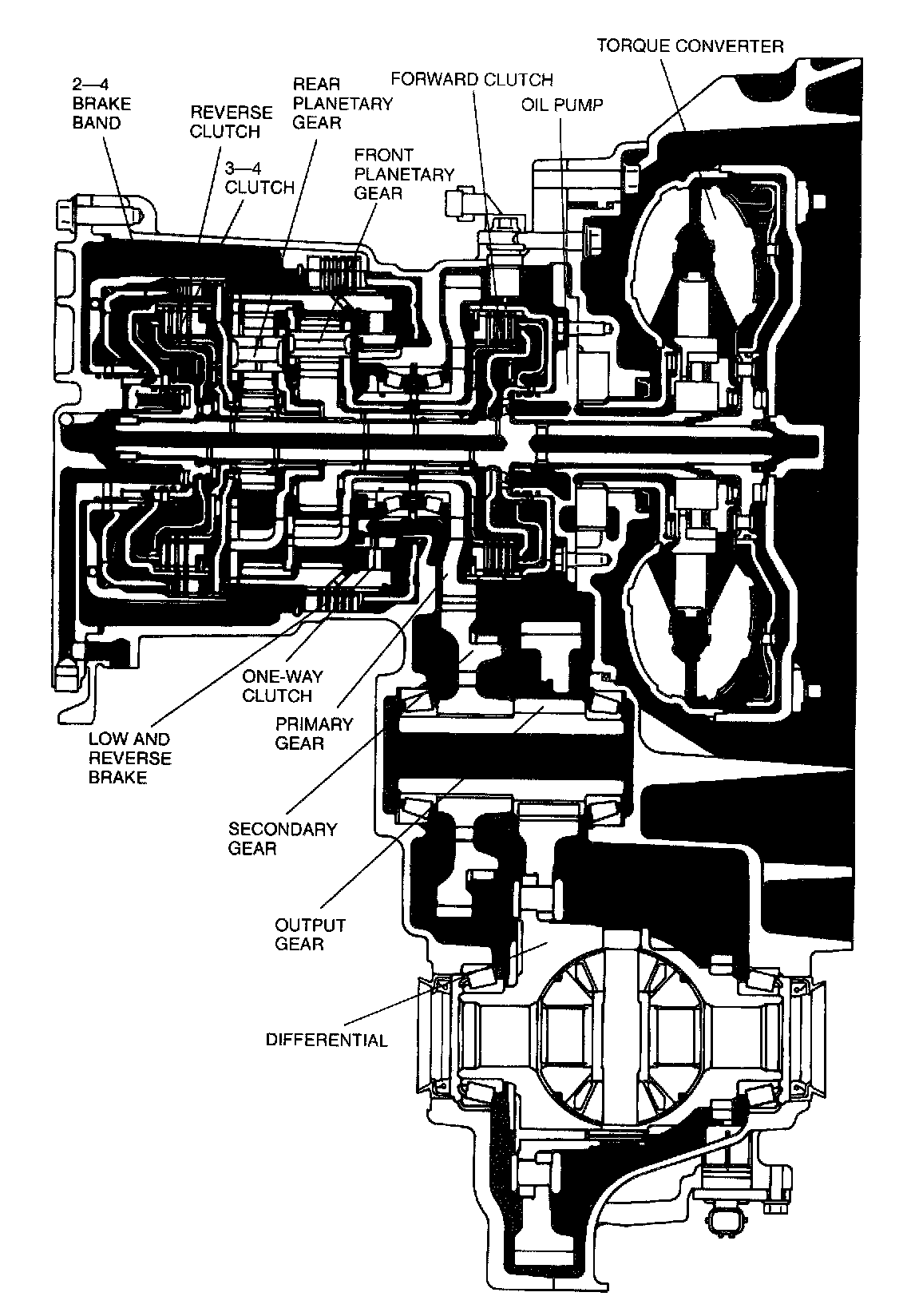

Automatic Transaxle Cross-Sectional View
FN4A-EL Electronically Controlled Automatic Transaxle:
