Air Bag: Tools and Equipment

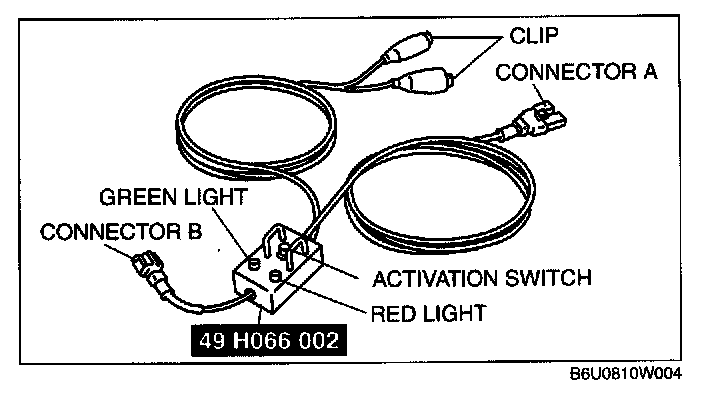

INSPECTION OF SST (DEPLOYMENT TOOL)

- Use the SST (Deployment tool) to deploy a live (undeployed) air bag module or pre-tensioner seat belt before disposing of it.




- Before using the SST (Deployment tool), inspect its operation.

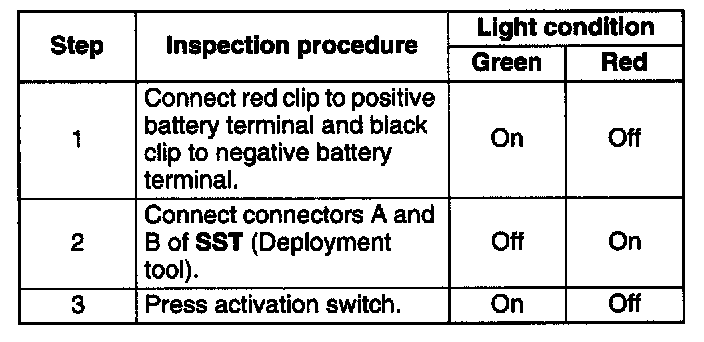

Inspection Procedure

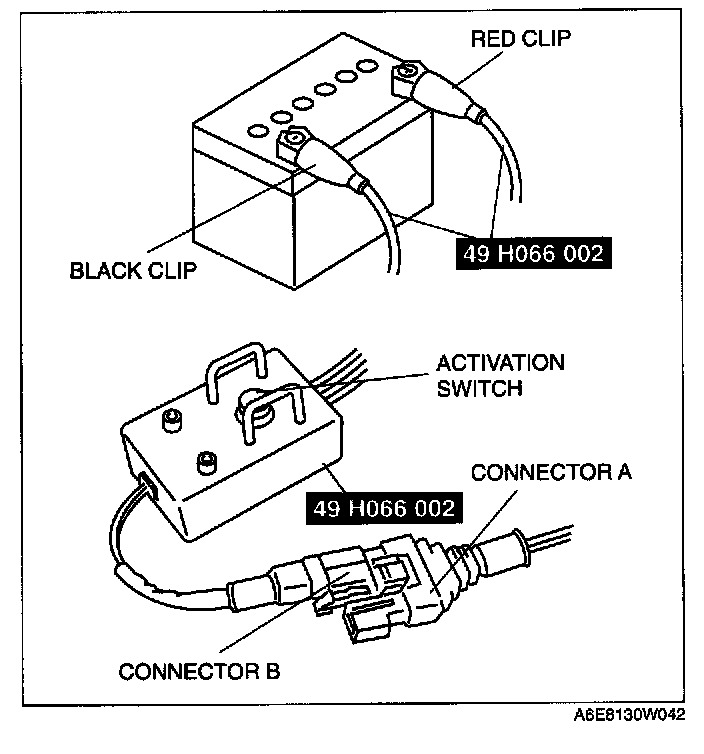

1. Follow the steps to verify that the SST (Deployment tool) is operating correctly.
- If not as specified, do not use the SST (Deployment tool) because it may cause the air bag module or pre-tensioner seat belt to unexpectedly deploy upon connection to the air bag module or pre-tensioner seat belt.
