Disassembly and Assembly

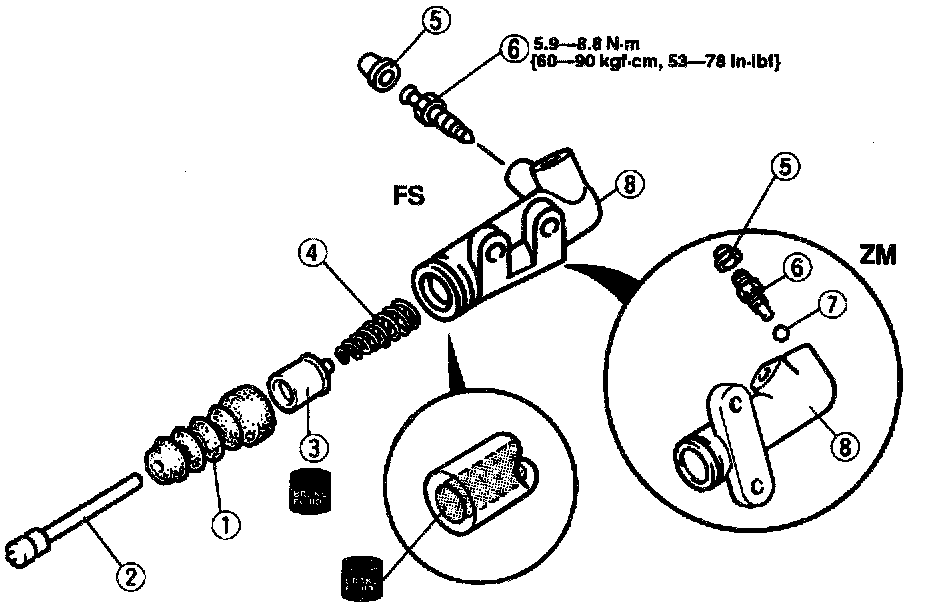

CLUTCH RELEASE CYLINDER OVERHAUL W/ RELATED COMPONENTS





Part 1 of 3

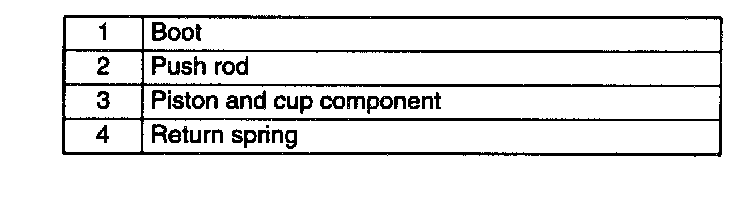

Part 2 of 3

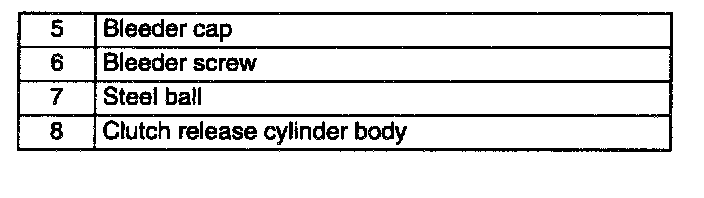

Part 3 of 3
