Front Tweeter

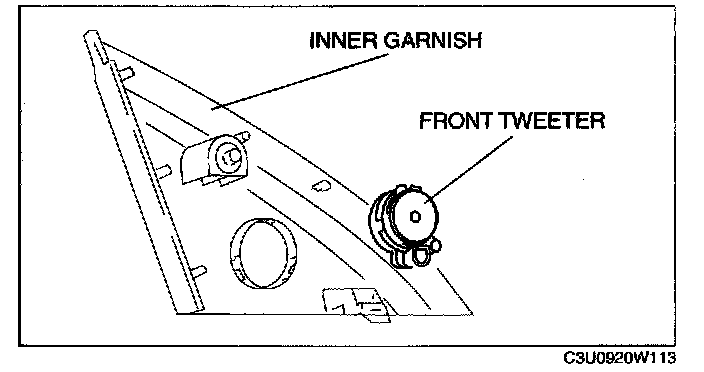

FRONT TWEETER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the inner garnish.




3. Remove the front tweeter.
4. Install in the reverse order of removal.
