Evaporative Emission Control Canister: Testing and Inspection

CHARCOAL CANISTER INSPECTION

1. Remove the charcoal canister. (See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM COMPONENT REMOVAL/INSTALLATION.)

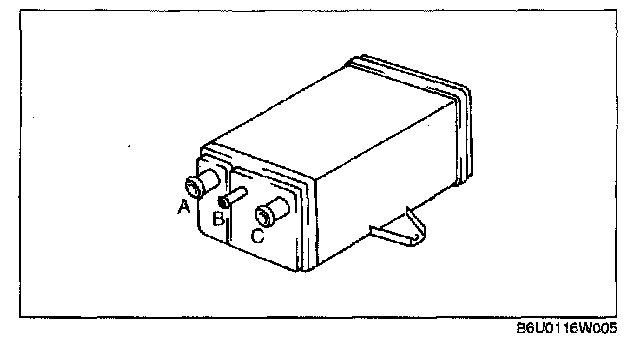

2. Plug ports A and C, then blow air into port B.

CAUTION: Do not apply the pressure more than 20 kPa {0.2 kgf/sq.cm, 2.8 psi} to the charcoal canister. Doing so will damage the charcoal canister.

3. Verify that there is no air leakage from the case. - If not as specified, replace the charcoal canister.
