Rear Wiper Motor [5HB, WGN]

REAR WIPER MOTOR REMOVAL/INSTALLATION [5HB, WGN]

1. Disconnect the negative battery cable.
2. Remove the rear wiper arm and blade.
3. Remove the liftgate lower trim.

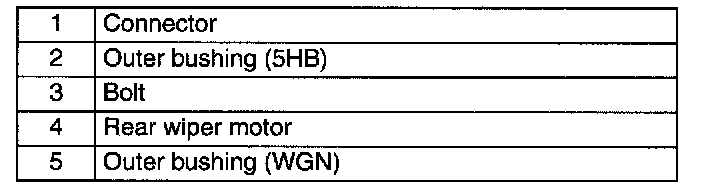

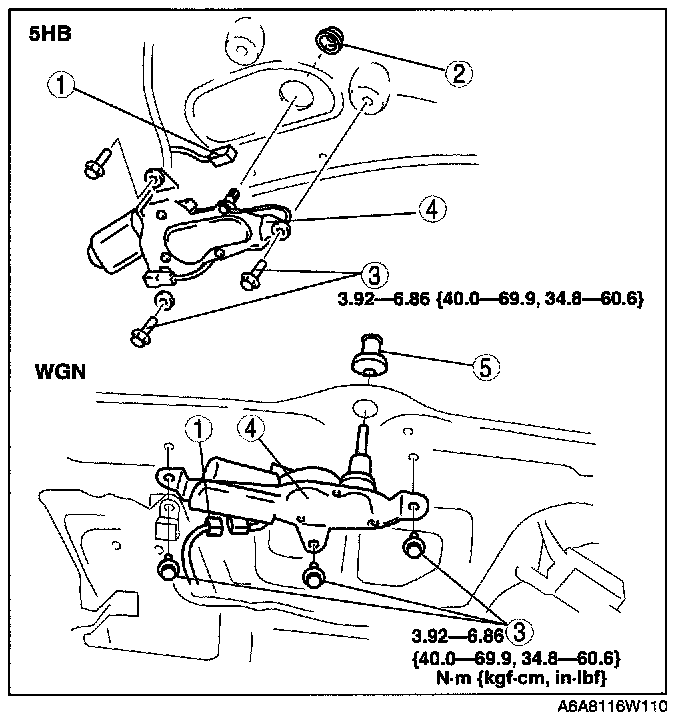

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Adjust the rear wiper arm and blade.
