Intake Manifold: Locations

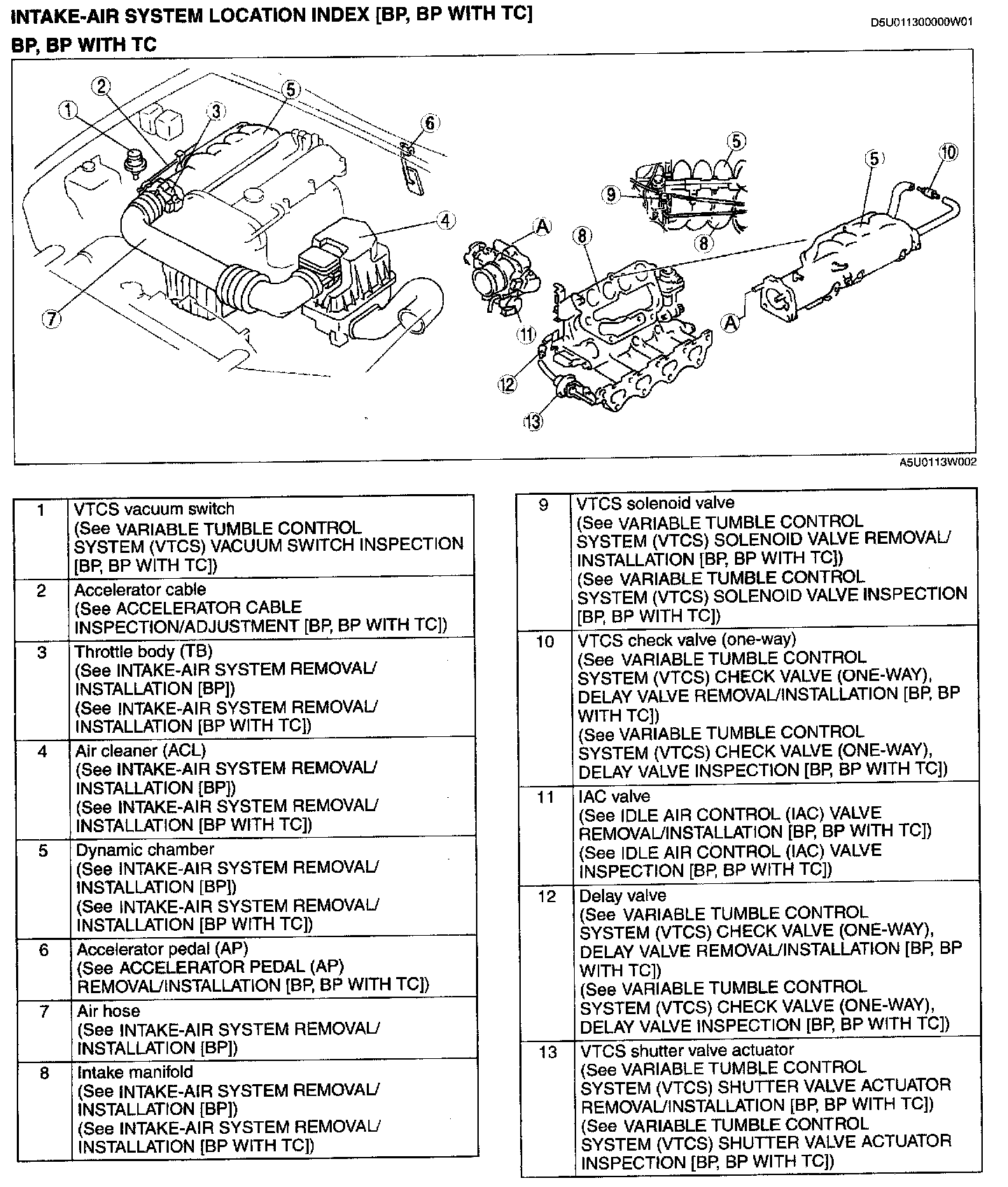

Intake-Air System Location Index (BP, BP With TC):



Intake-Air System Location Index:
