Fuel Pressure Pulsation Damper: Service and Repair

PULSATION DAMPER REMOVAL/INSTALLATION

1. Remove the fuel distributor.

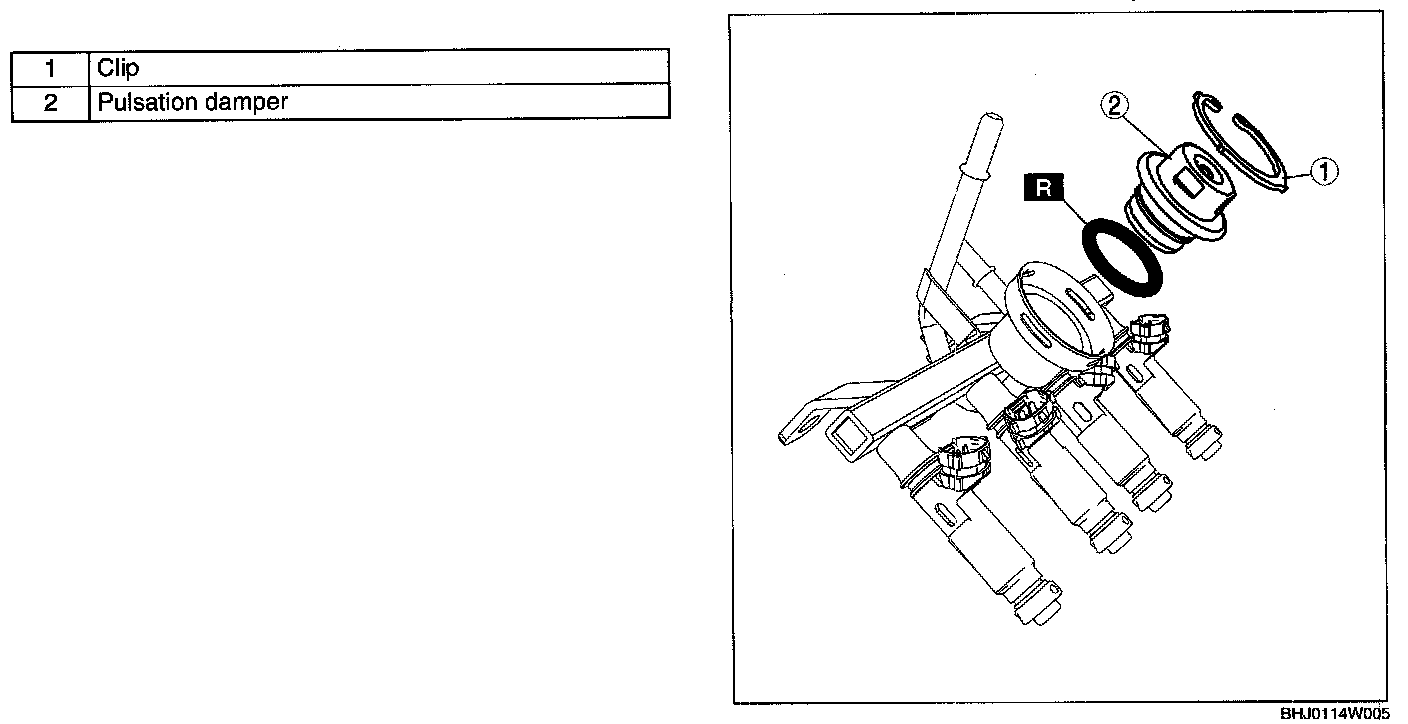

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Inspect all parts by performing the "AFTER REPAIR PROCEDURE". (See AFTER REPAIR PROCEDURE.) After Repair Procedure
