Front Tweeter

FRONT TWEETER INSPECTION

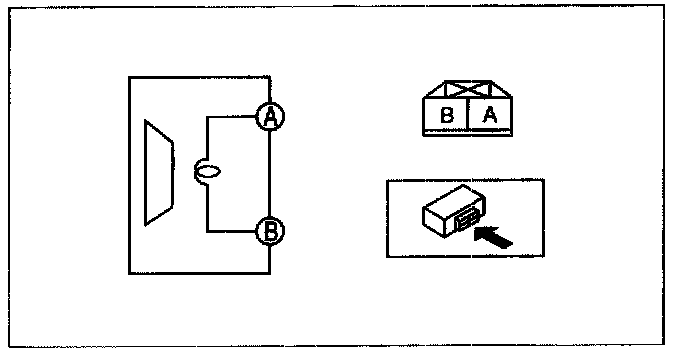

1. Verify the resistance between front tweeter terminals.
- If the resistance is not within the specification, replace the front tweeter.

Resistance
3.2 ohms

2. Connect a 1.5 V battery to the front tweeter and verify that noise is sound from the front tweeter.
- If no sound is output, replace the front tweeter.
