Seat Belt: Adjustments

ADJUSTER ANCHOR REMOVAL/INSTALLATION

WARNING: The side air bag sensor is attached to the lower part of the B-pillar. When working around the B-pillar, disconnect the negative battery cable avoiding excessive impact to the lower part of the B-pillar.

1. Remove the following parts.
1. Front scuff plate inner
2. Rear scuff plate
3. B-pillar lower trim
4. Front seat belt upper anchor installation bolt
5. B-pillar upper trim

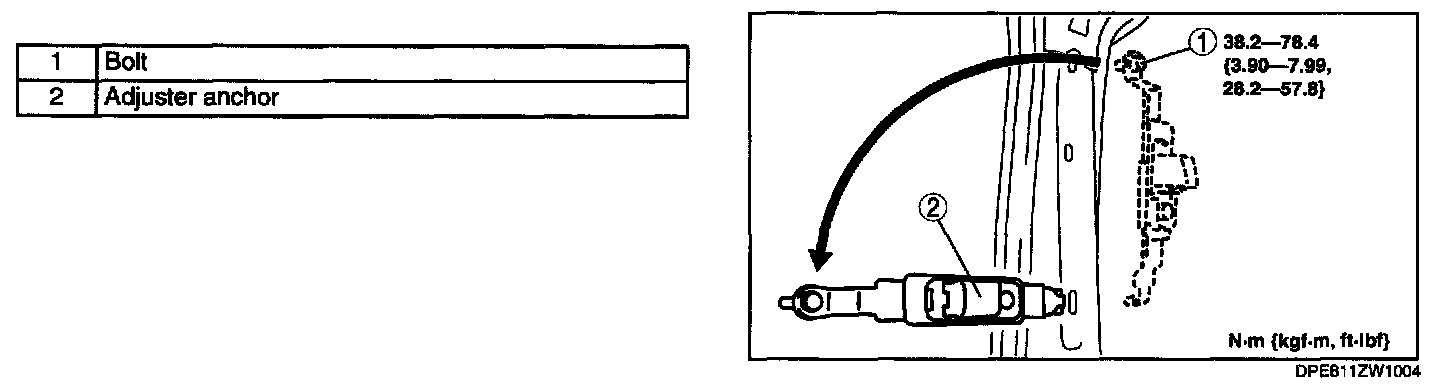

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
