Quick Diagnostic Chart
Quick Diagnostic Chart

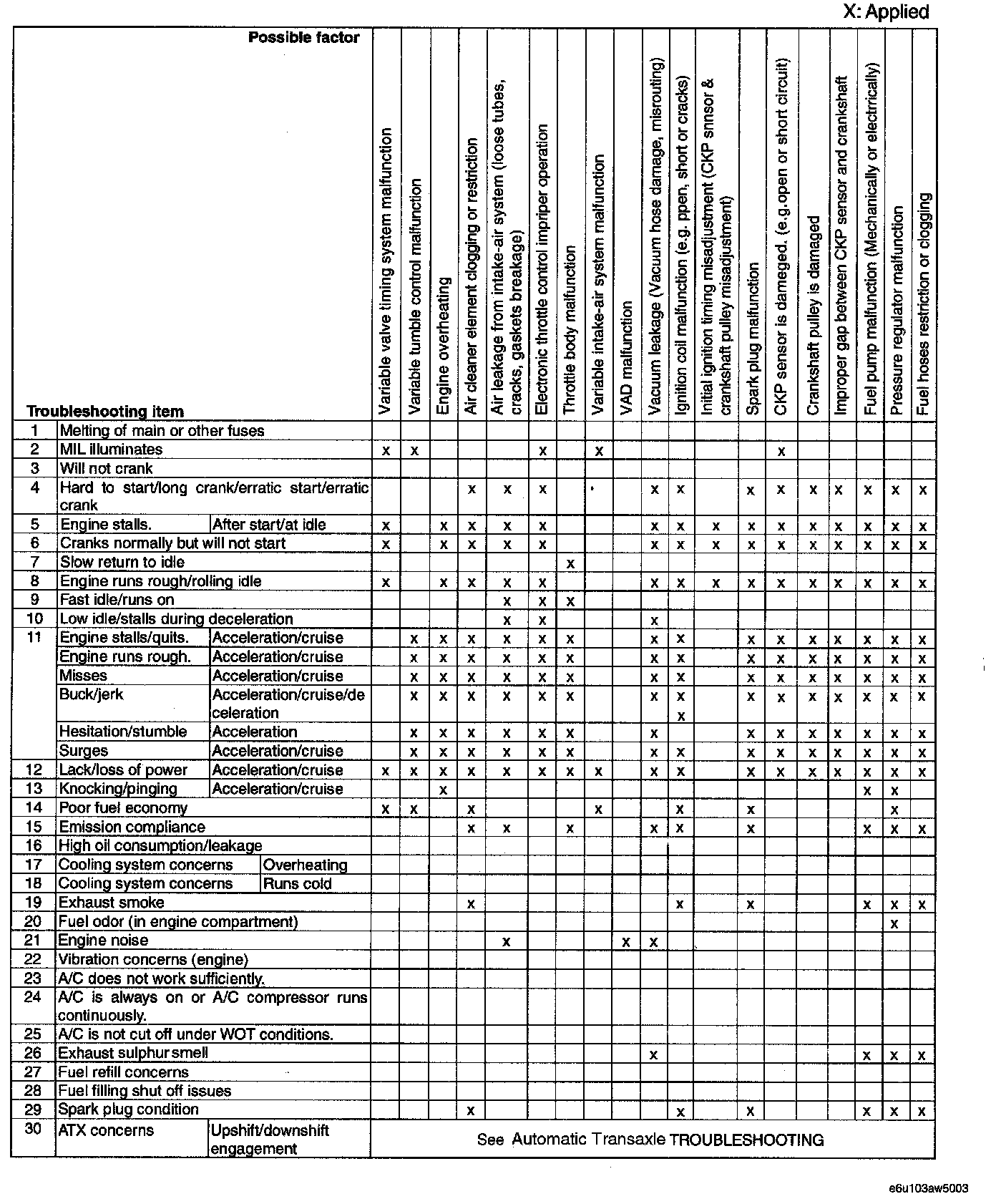

Quick Diagnostic Chart[L3]:

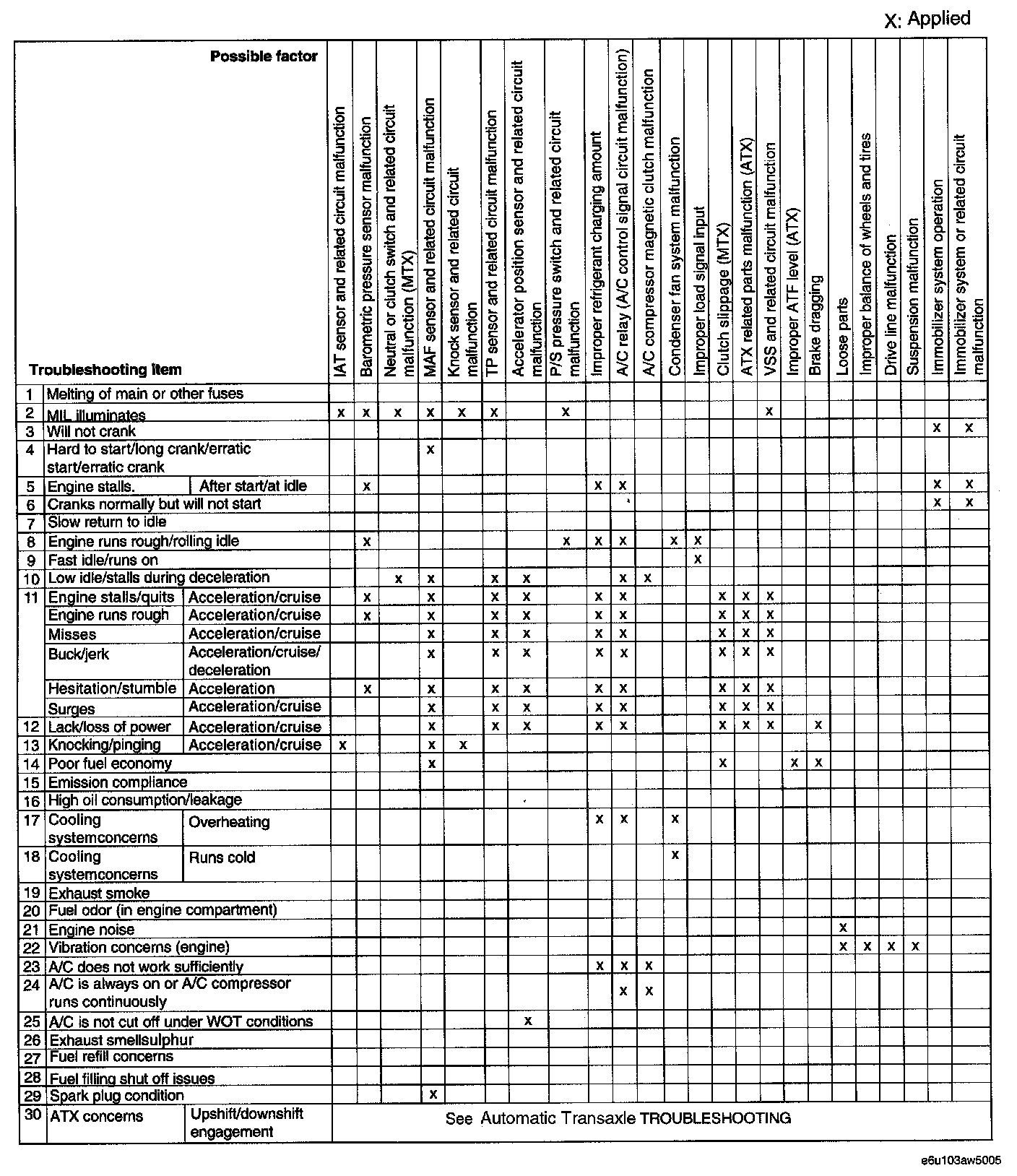

Quick Diagnostic Chart[L3] (Part 2):

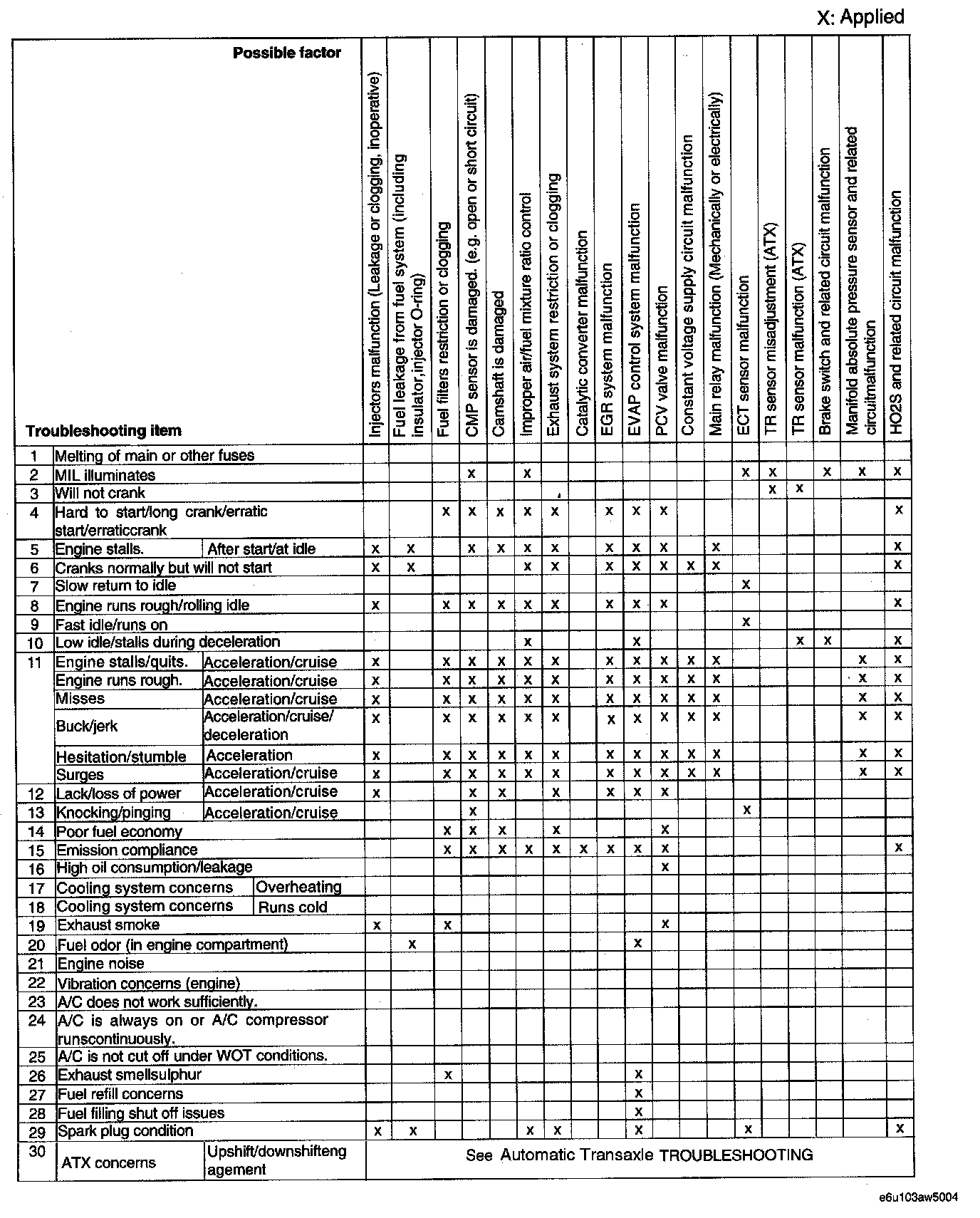

Quick Diagnostic Chart[L3] (Part 3):
Quick Diagnostic Chart[L3] (Part 4):
