Home >> Mazda >> 2007 >> 6 V6-3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

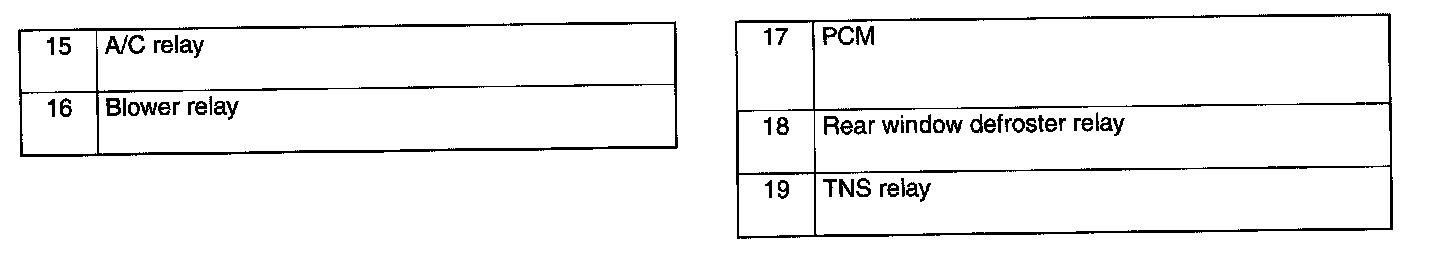

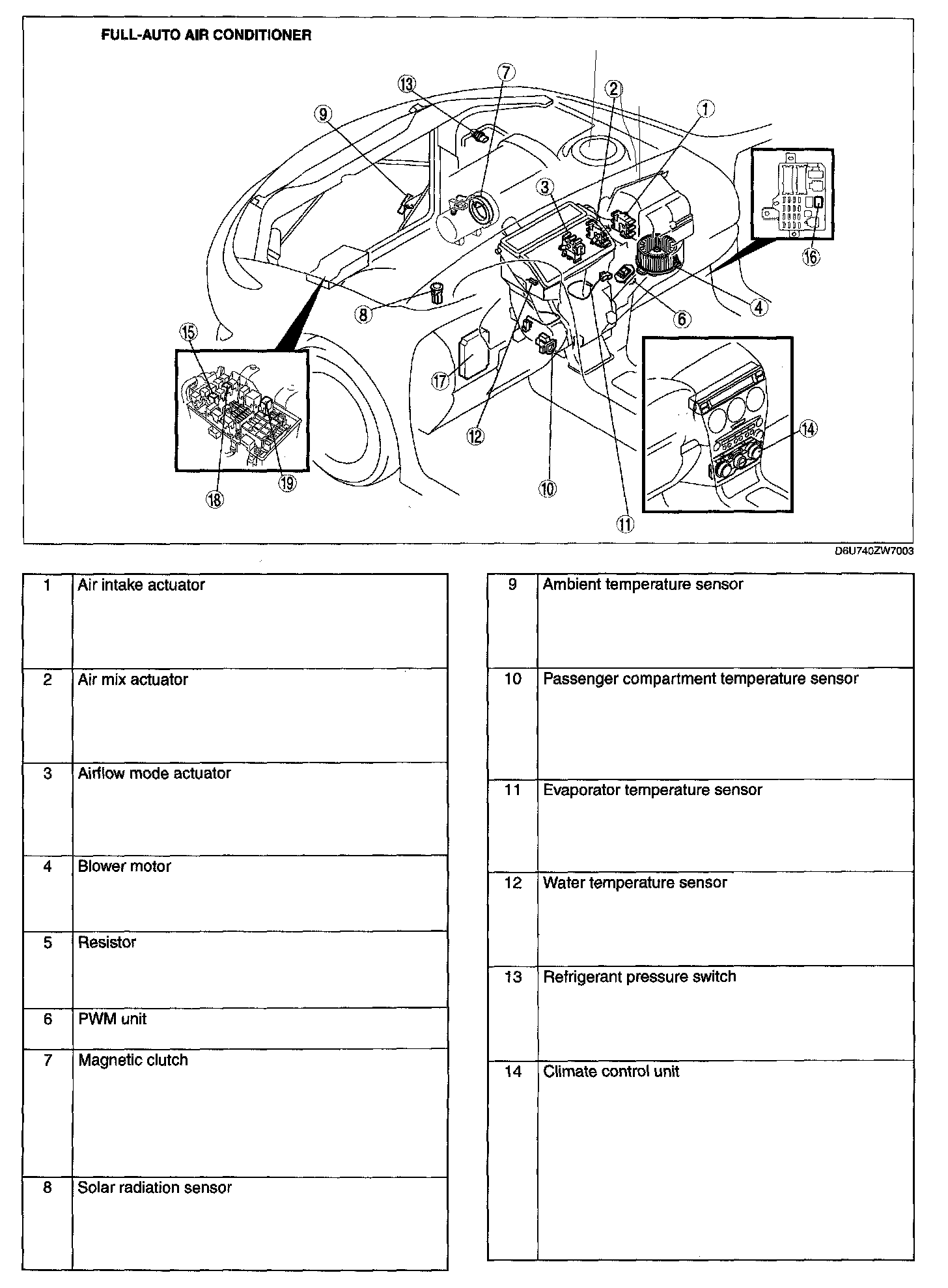

Control System Location Index - Full-auto Air Conditioner:



Control System Location Index - Full-auto Air Conditioner:
