[AW6A-El]



Fluid Pan

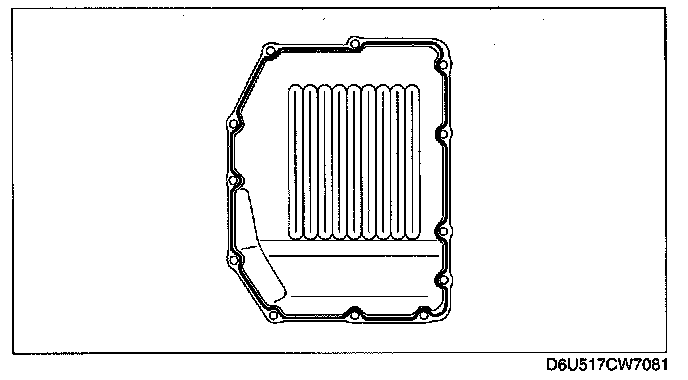

.Apply sealant to the new control valve body cover as shown in the figure.

Caution: Be careful that the coupler component will not become caught between the control valve body cover and transaxle case.

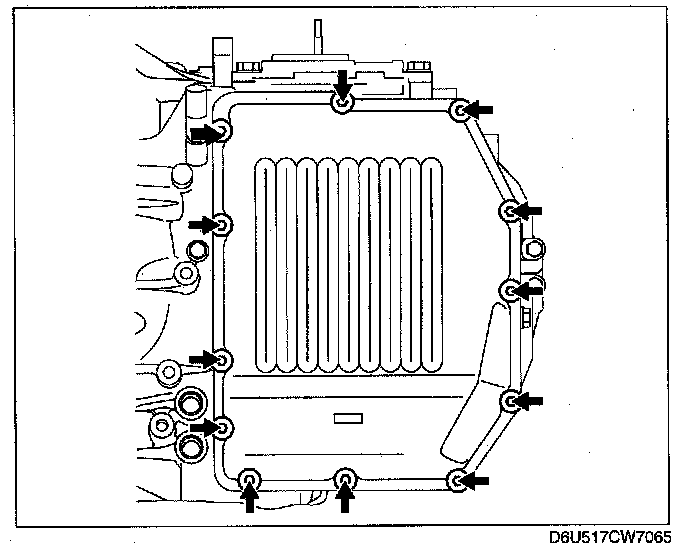

Install the new control valve body cover with new seal bolts.

Tightening torque 9.8 - 15.7 N-m (100 - 160 kgf-cm, 87 - 138 in-lbf)
