Canister Purge Solenoid: Service and Repair

PURGE SOLENOID VALVE REMOVAL/INSTALLATION[L3 WITH TC]

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the charge air cooler duct.

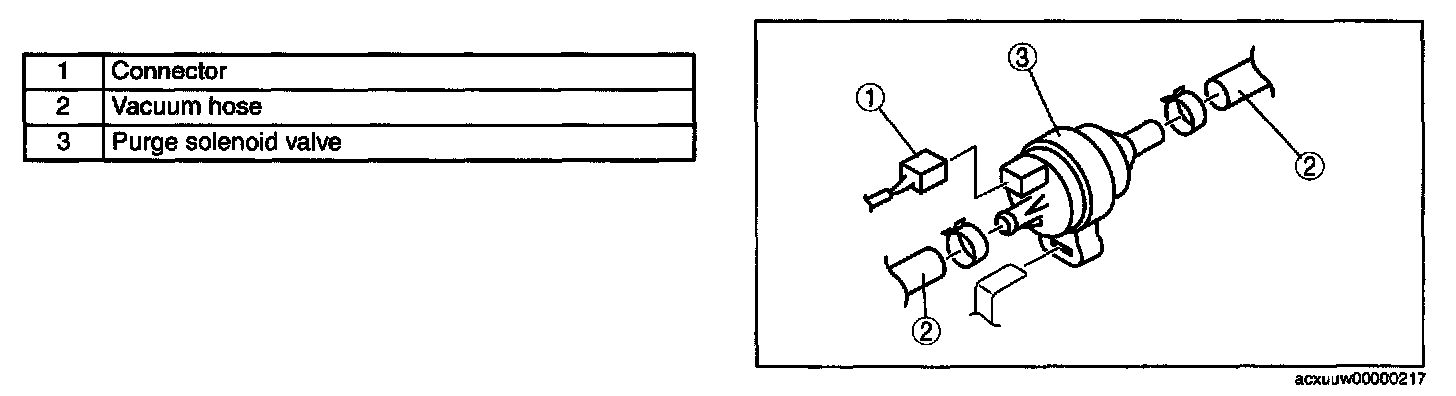

4. Removal in the order indicated in the table.
5. Install in the reverse order of removal.
