Voice Activation Microphone: Service and Repair

AUDIOPILOT MICROPHONE REMOVAL/INSTALLATION

NOTE: "Audiopilot" is a registered trademark of Bose Corporation.

1. Disconnect the negative battery cable.
2. Remove the lower panel

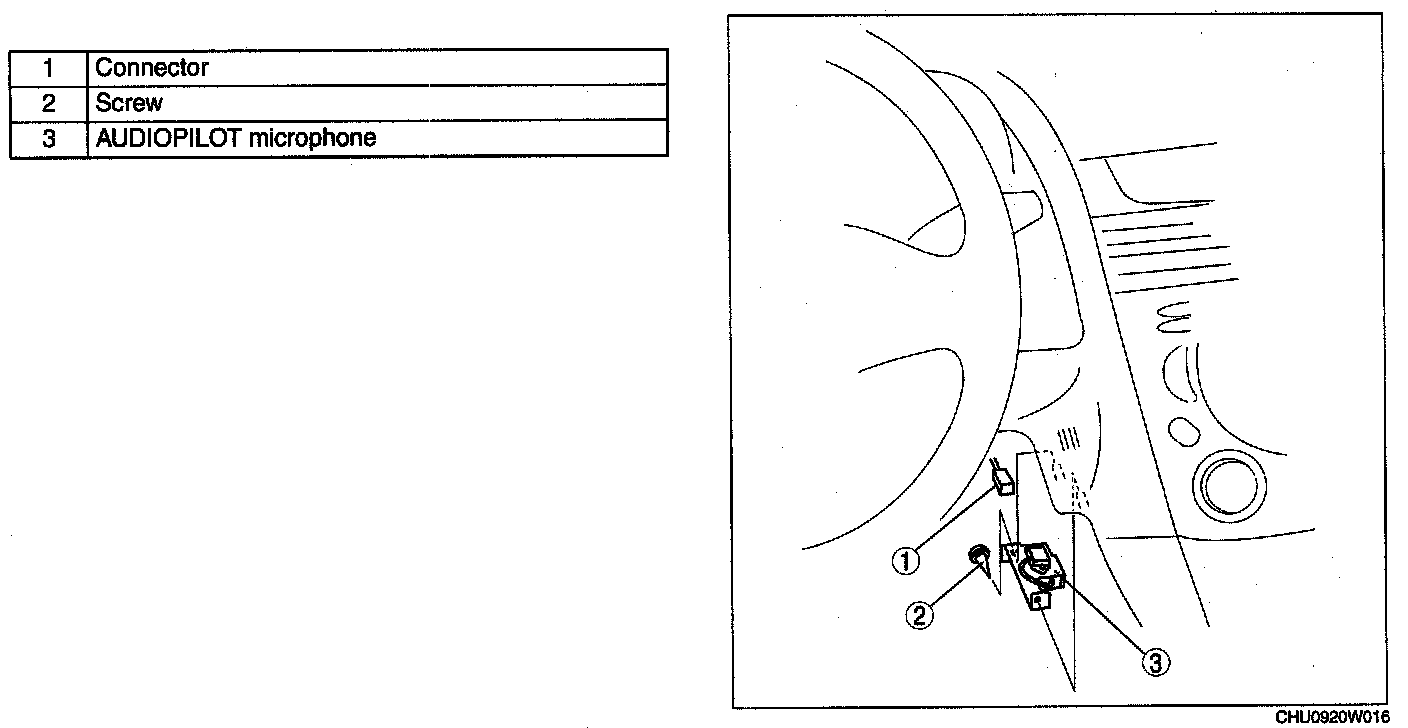

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
