Power Brake Unit Fluid Pressure

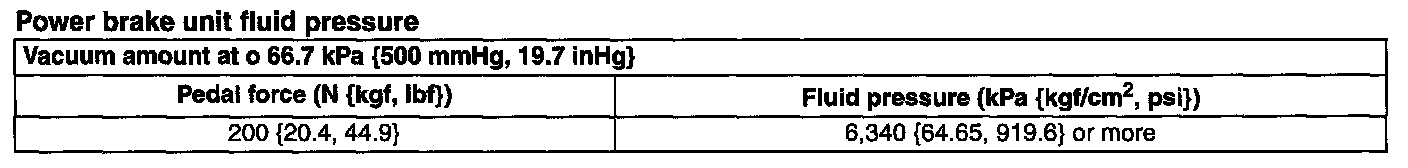

Power Brake Unit Fluid Pressure (Part 1):

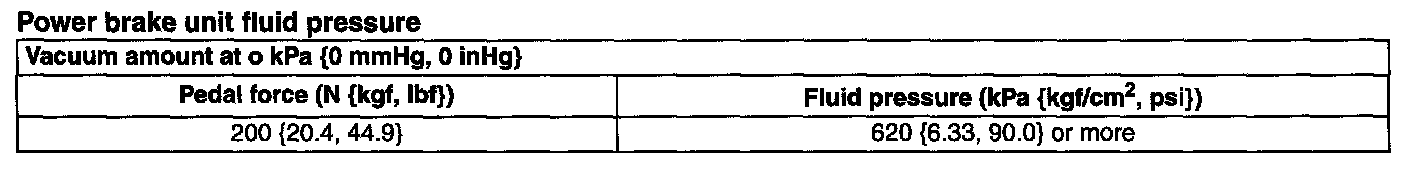

Power Brake Unit Fluid Pressure (Part 2):
