Vacuum Brake Booster: Service and Repair

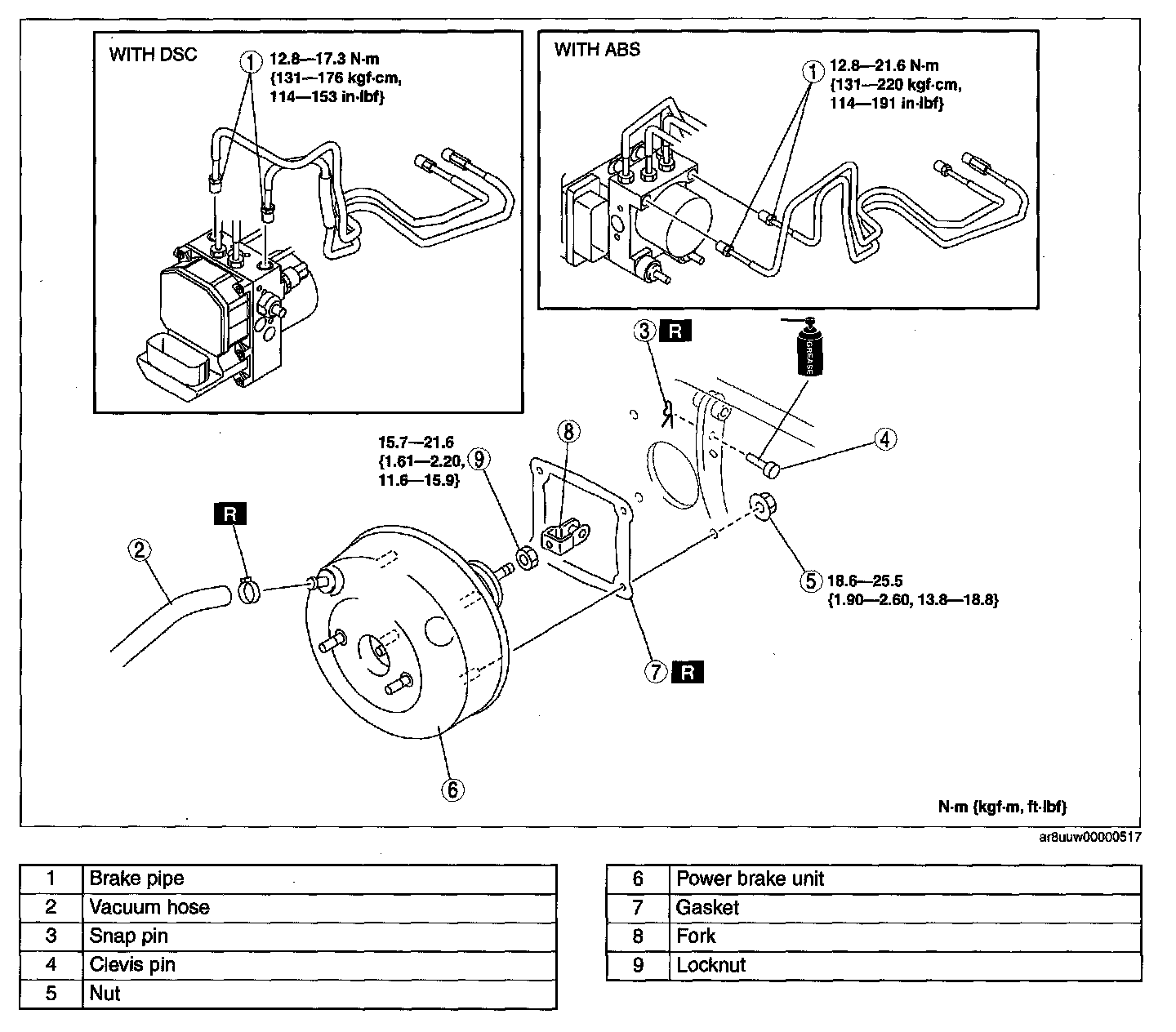

POWER BRAKE UNIT REMOVAL/INSTALLATION

1. Remove the master cylinder.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. After installation, perform brake pedal inspection. (See BRAKE PEDAL INSPECTION.) Testing and Inspection
