Clutch Release Collar Inspection

CLUTCH RELEASE COLLAR INSPECTION

CAUTION:
- Cleaning the clutch release collar with cleaning fluids or a steam cleaner can wash the grease out of the sealed bearing.

1. Refer to CLUTCH UNIT REMOVAL/INSTALLATION to remove the clutch release collar. Service and Repair

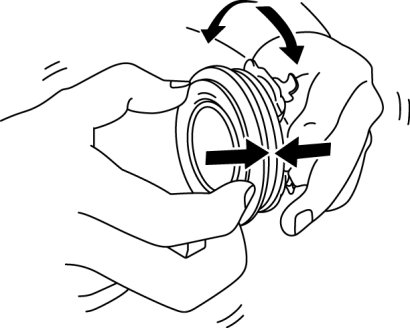

2. Turn the collar while applying force in the axial direction.






- If the collar sticks or has excessive resistance, replace the clutch release collar. Service and Repair
