Automatic Volume Control: Service and Repair

(R)

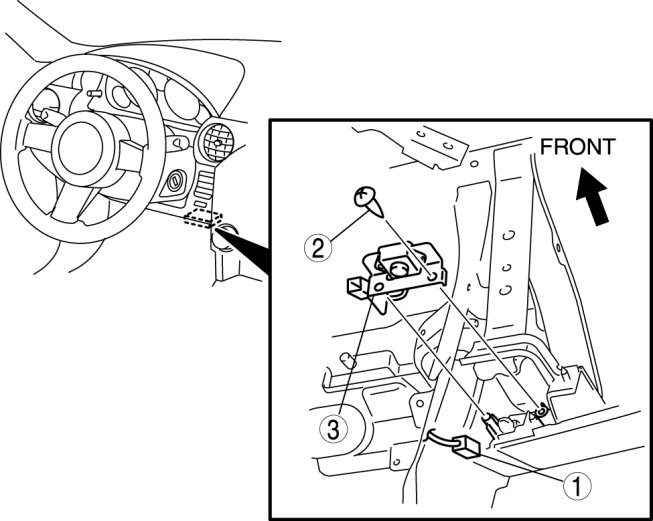

AudioPilot(R)2 MICROPHONE REMOVAL/INSTALLATION

NOTE:
- AudioPilot(R) 2 is a registered trademark of Bose(R) Corporation.

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

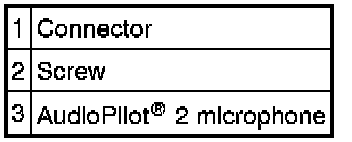

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
