Vacuum Brake Booster: Service and Repair

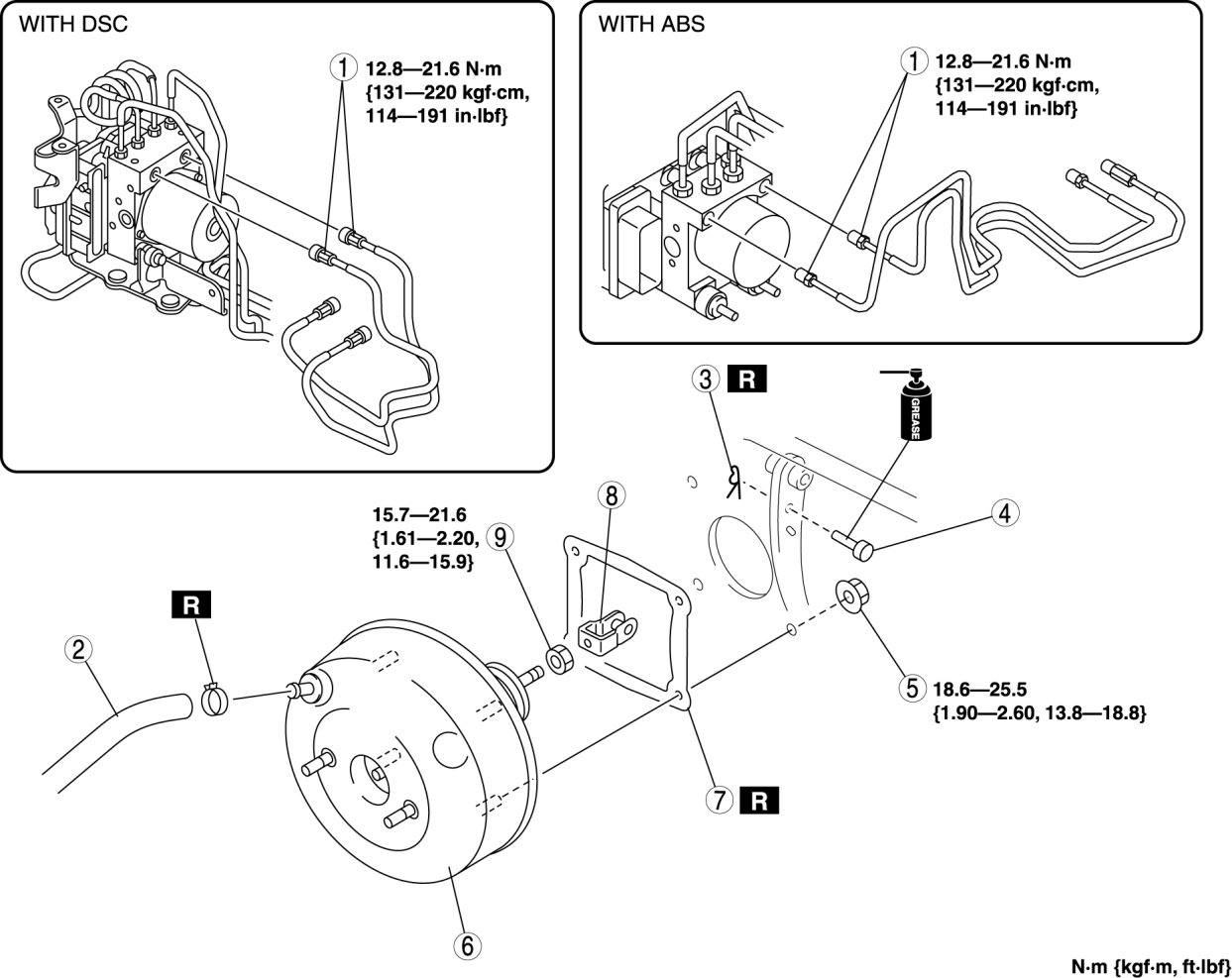

POWER BRAKE UNIT REMOVAL/INSTALLATION

1. Remove the engine cover. Service and Repair

2. Remove the front suspension tower bar. (MT) Front Suspension Tower Bar Removal/Installation - MT

3. Remove the master cylinder. Service and Repair

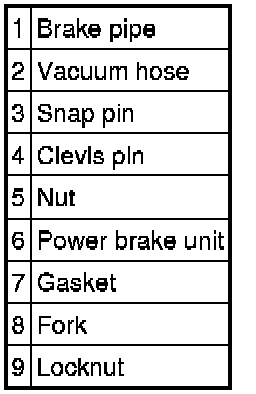

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

6. After installation, perform brake pedal inspection. Testing and Inspection
