Control System Wiring Diagram
Control System Wiring Diagram

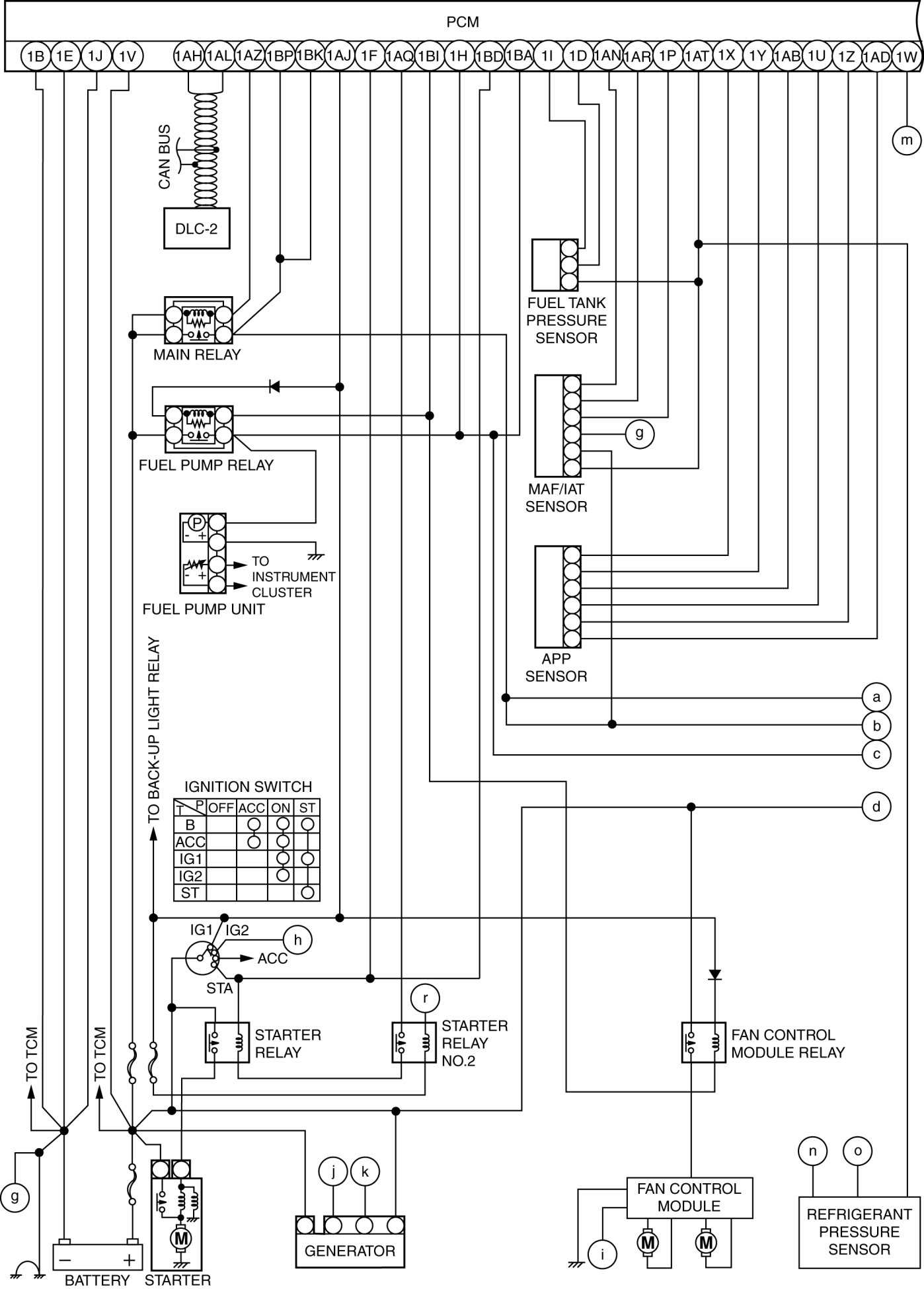

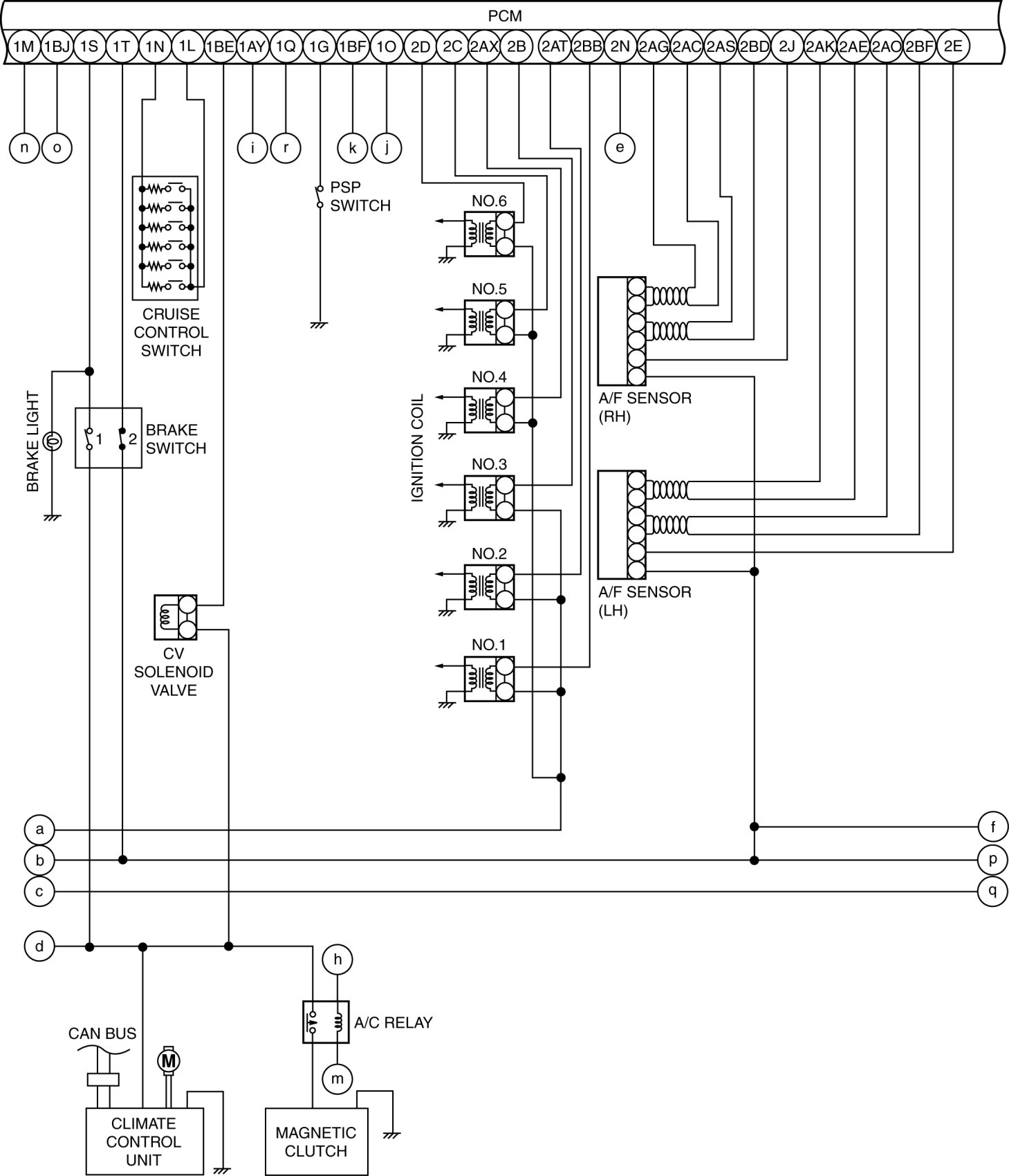

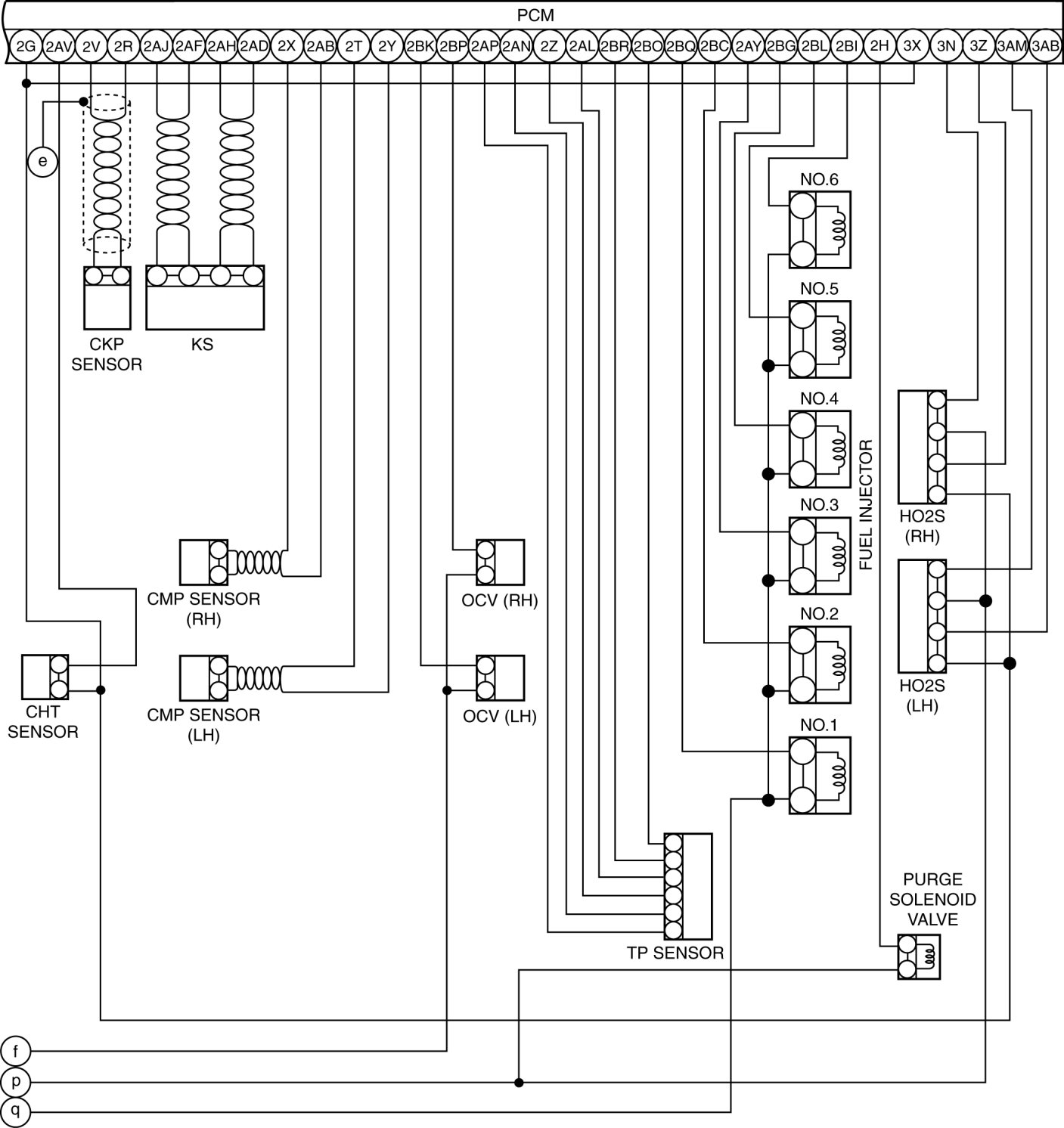

CONTROL SYSTEM WIRING DIAGRAM [MZI 3.7 V6]
