W/O Keyless Control Module Code B1681 And W/ Instrument Cluster Code B1681

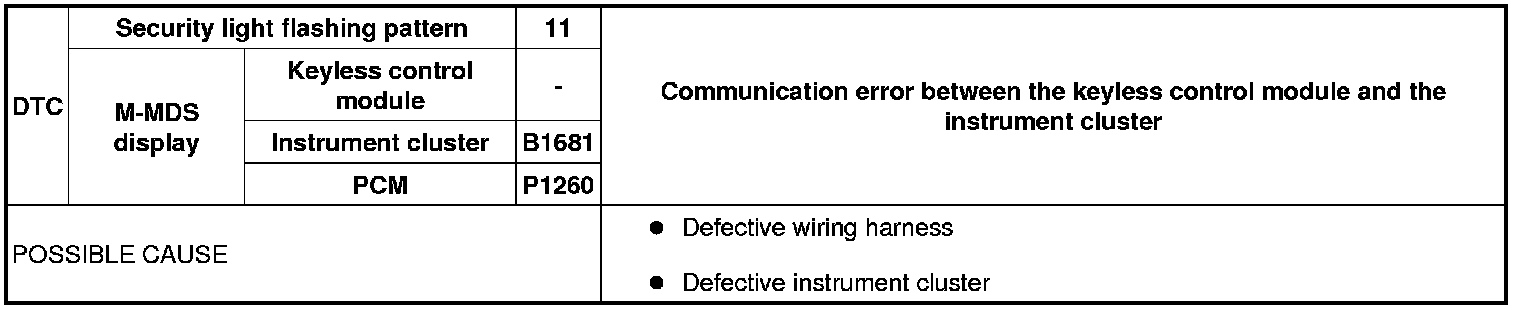

SECURITY LIGHT 11, DTC -/B1681/P1260 [IMMOBILIZER SYSTEM (ADVANCED KEYLESS AND START SYSTEM)]

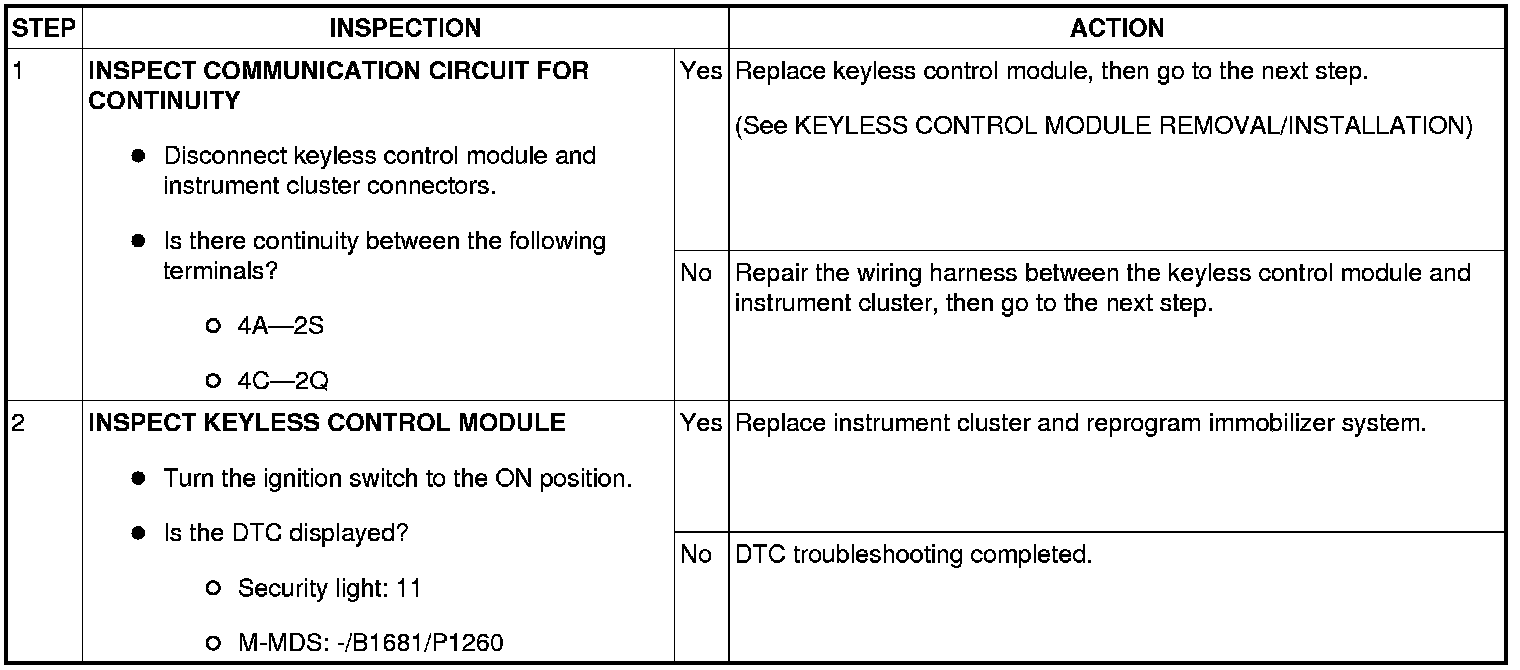

Diagnostic procedure
