Hazard Warning Flasher: Service and Repair

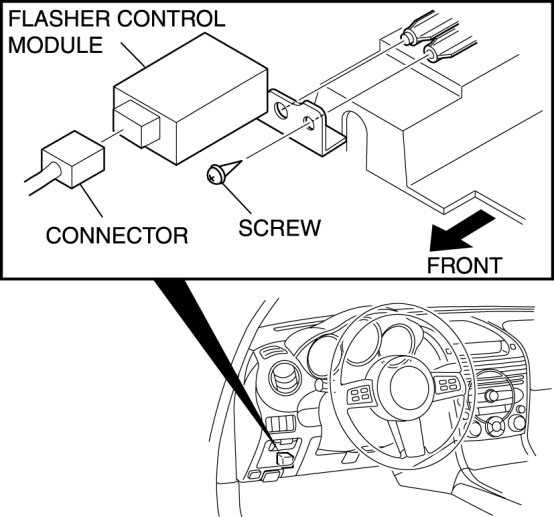

FLASHER CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Disconnect the connector.






3. Remove the screw and then remove the flasher control module.

4. Install in the reverse order of removal.
