Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2012
>>
5 L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>

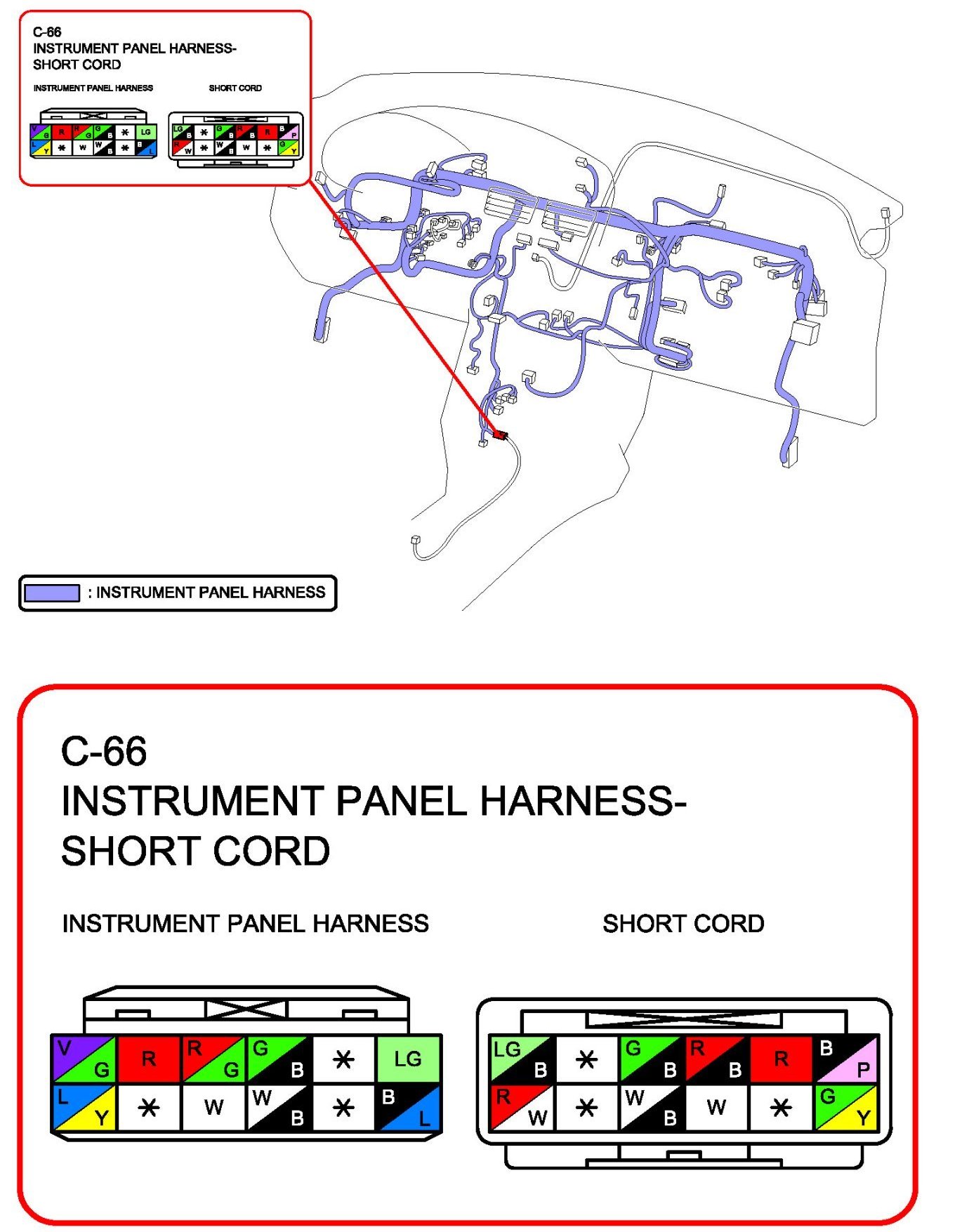

C-66 (Instrument Panel Harness-Short Cord)
C-66 (Instrument Panel Harness-Short Cord)
