Front Bumper Bracket: Service and Repair

FRONT BUMPER BRACKET REMOVAL [PANEL REPLACEMENT]

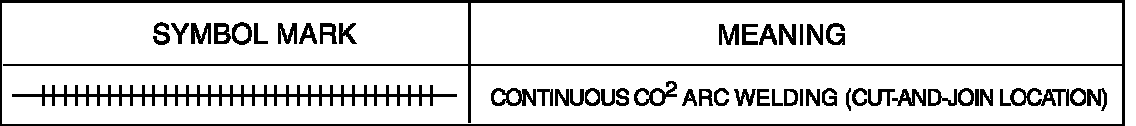

Symbol Mark







Removal Procedure

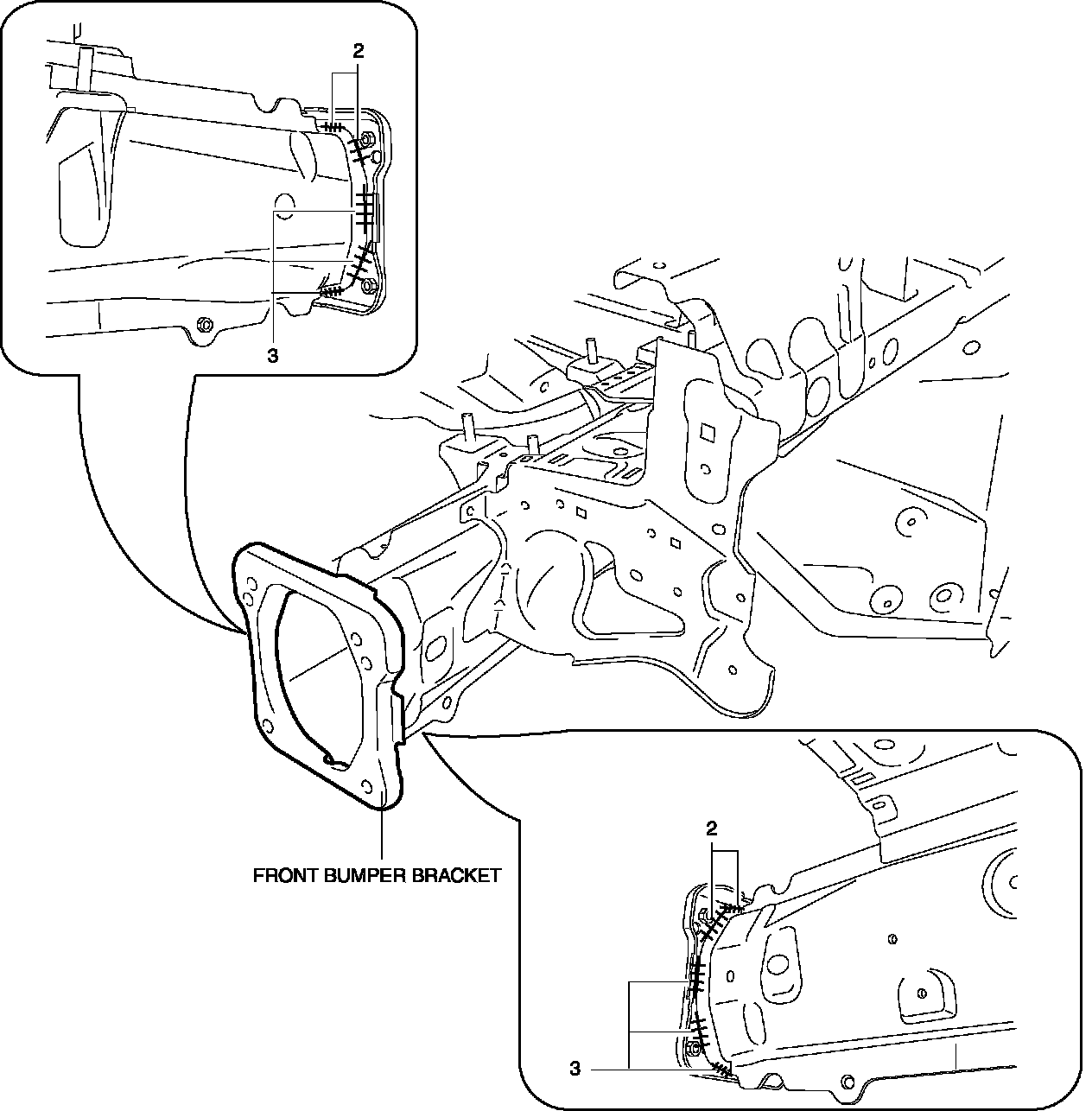

1. Grind the 10 locations shown in the figure.

CAUTION: Only the procedure for the left side is described, the shape of the right side differs.







2. Remove the front bumper bracket.

FRONT BUMPER BRACKET INSTALLATION [PANEL REPLACEMENT]

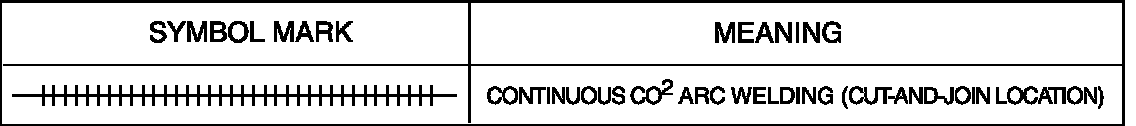

Symbol Mark







Installation Procedure

1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. After temporarily installing new parts, make sure the related parts fit properly.
3. Continuous CO2 arc weld the 10 locations shown in the figure while install the front bumper bracket.
