Power and Ground Distribution
>>
Fuse
>>
Locations
Fuse: Locations
Fuse Locations

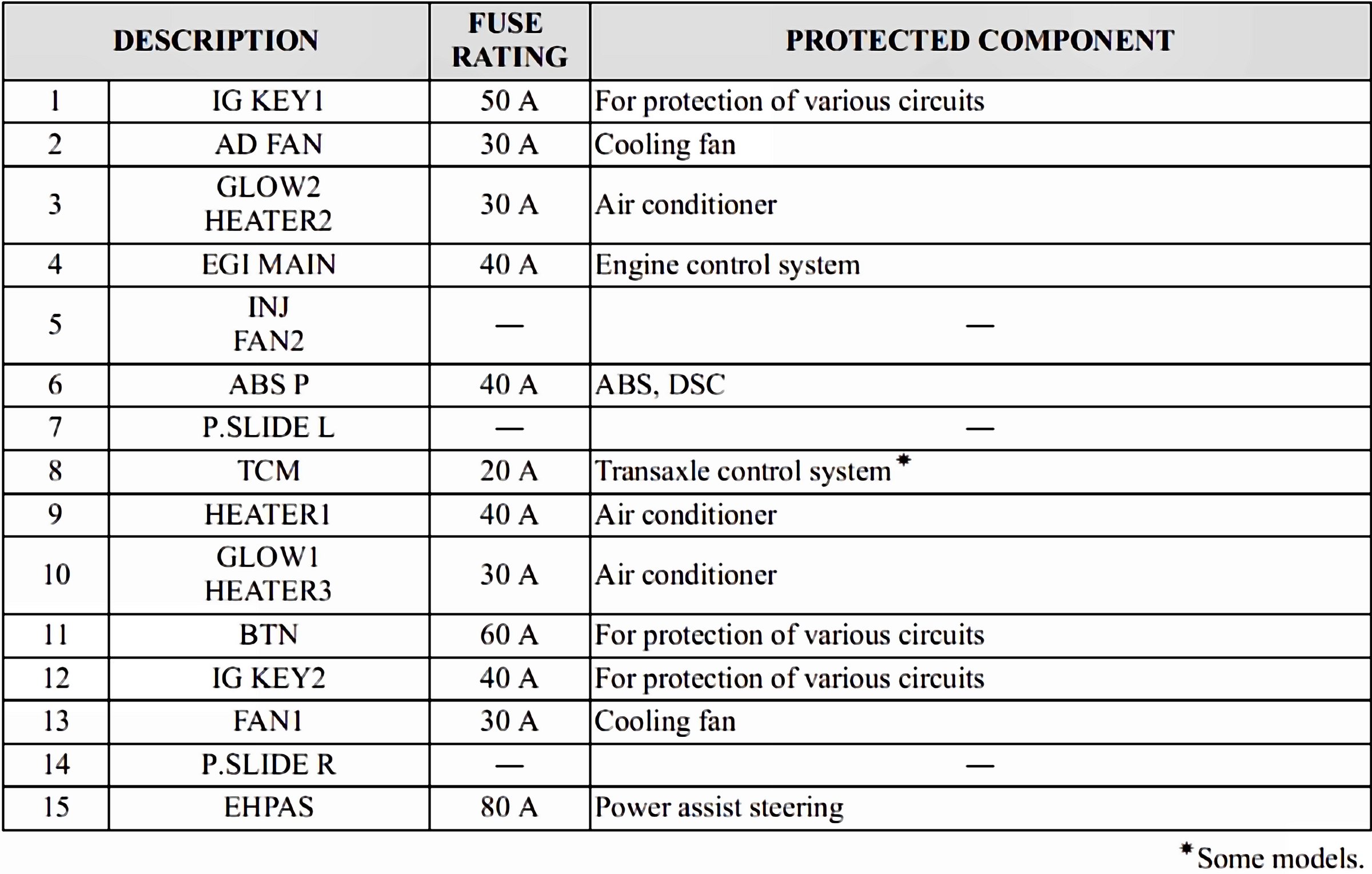

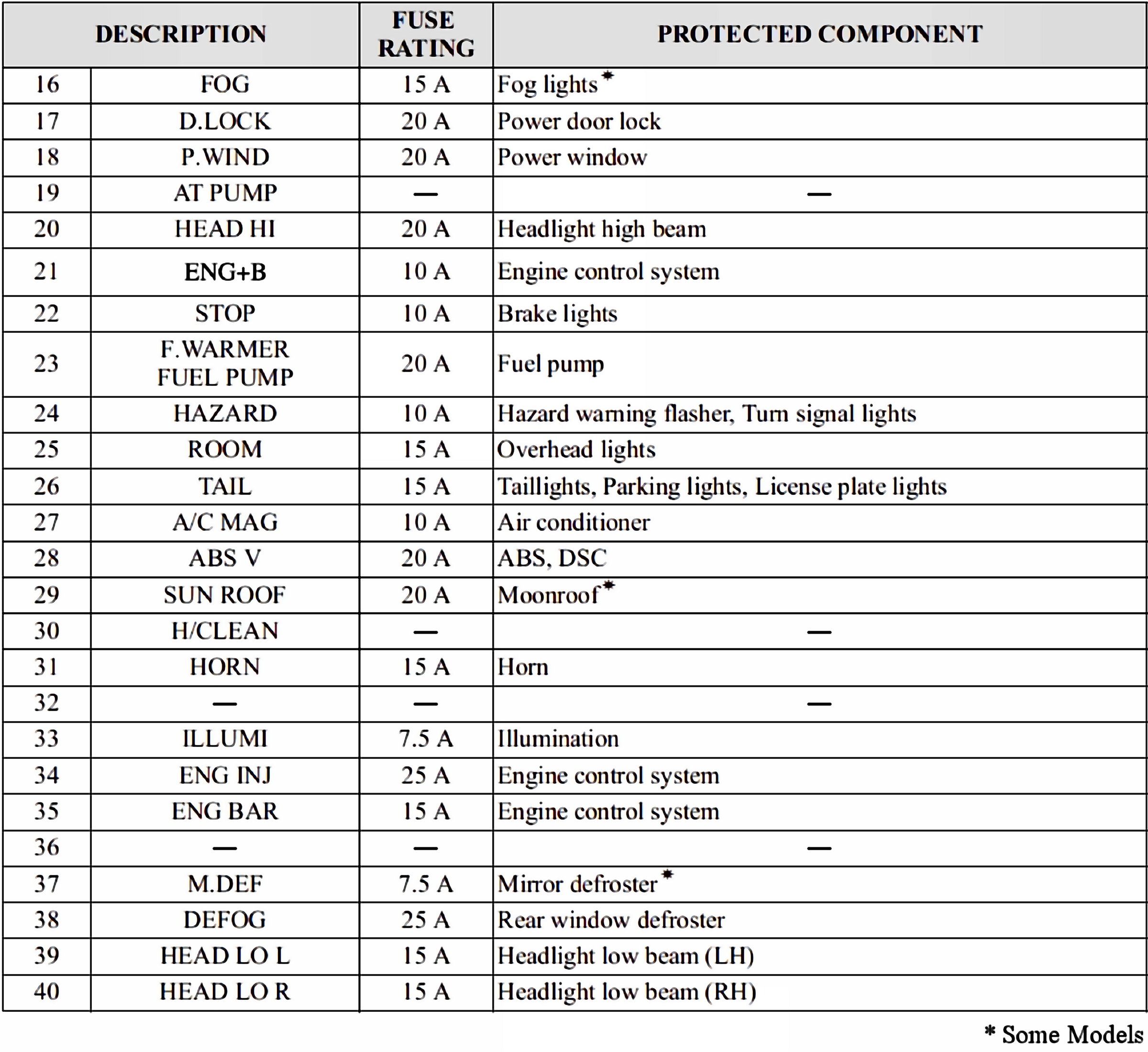

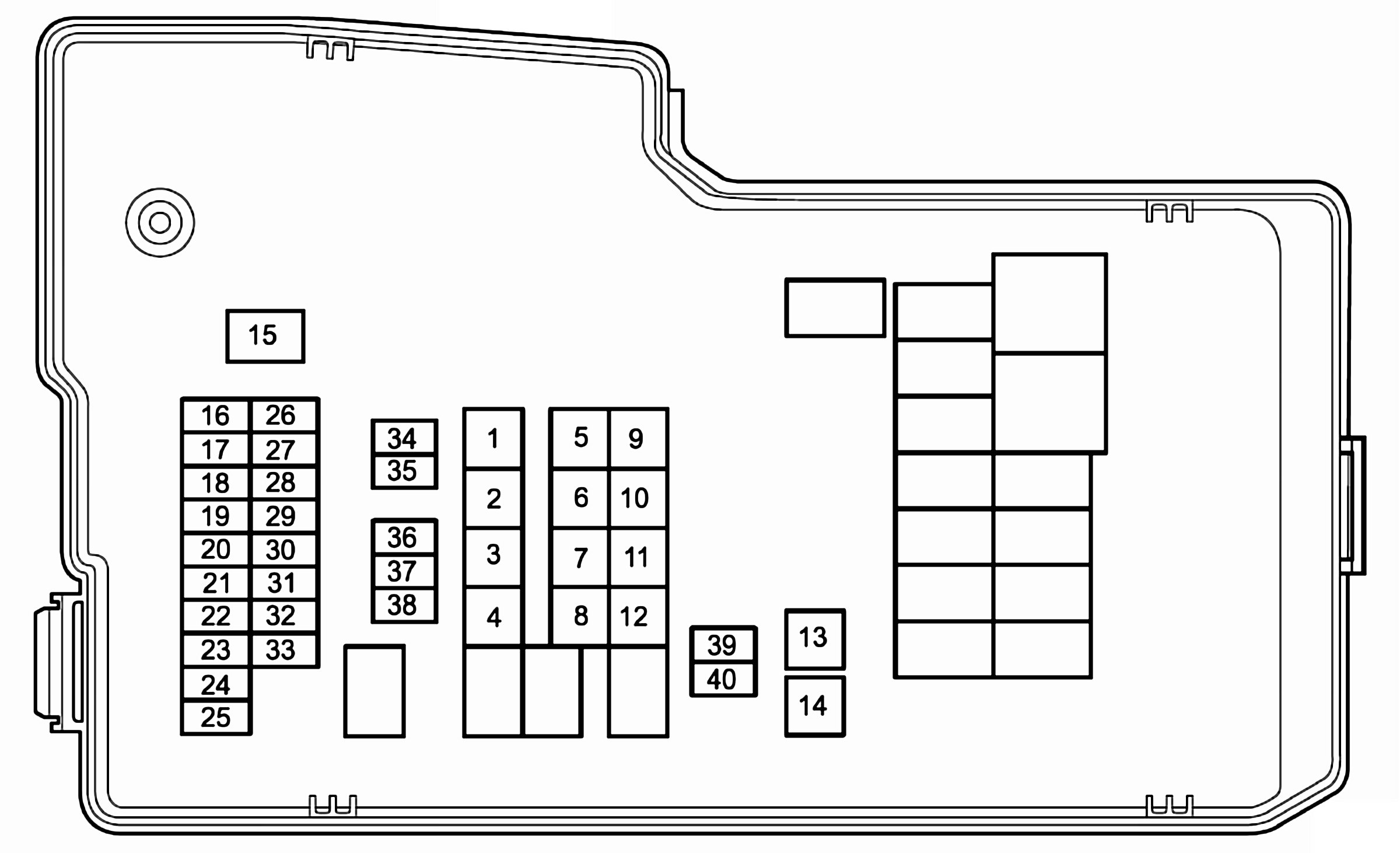

Engine Compartment:

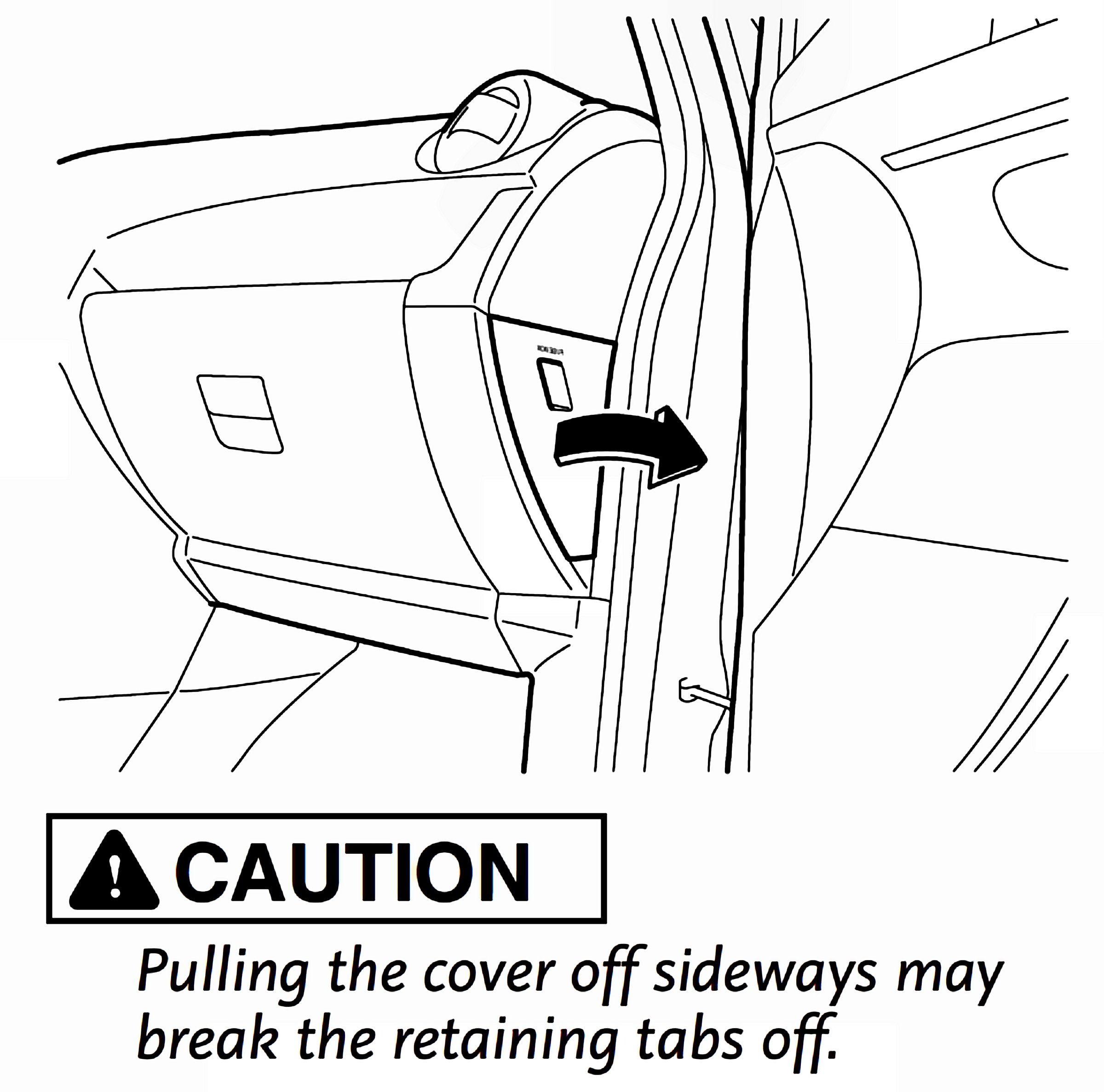

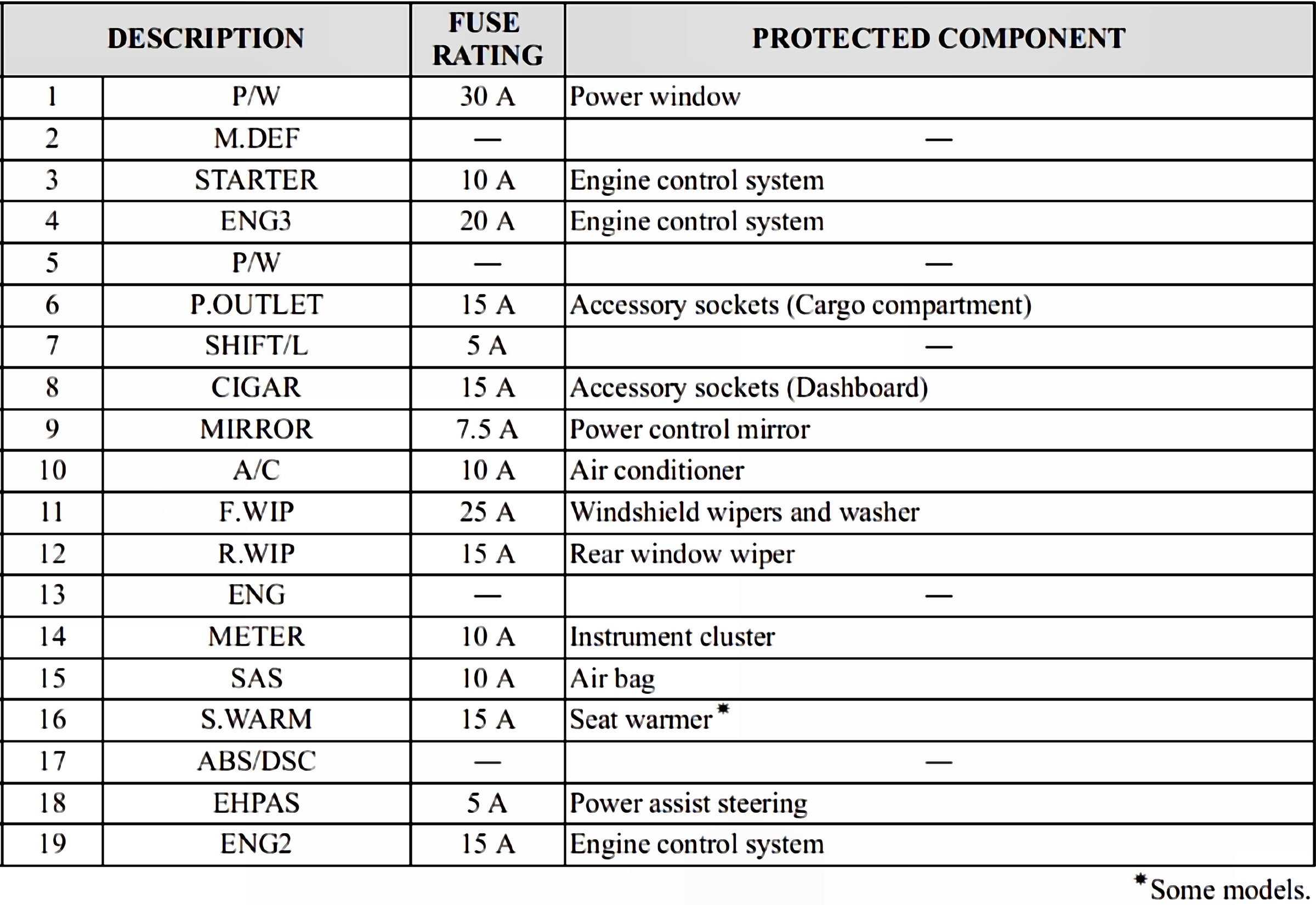

Interior Passenger's Side:
