Transmission Control Systems: Diagrams
Automatic Transmission PE27.19-U-2000MA

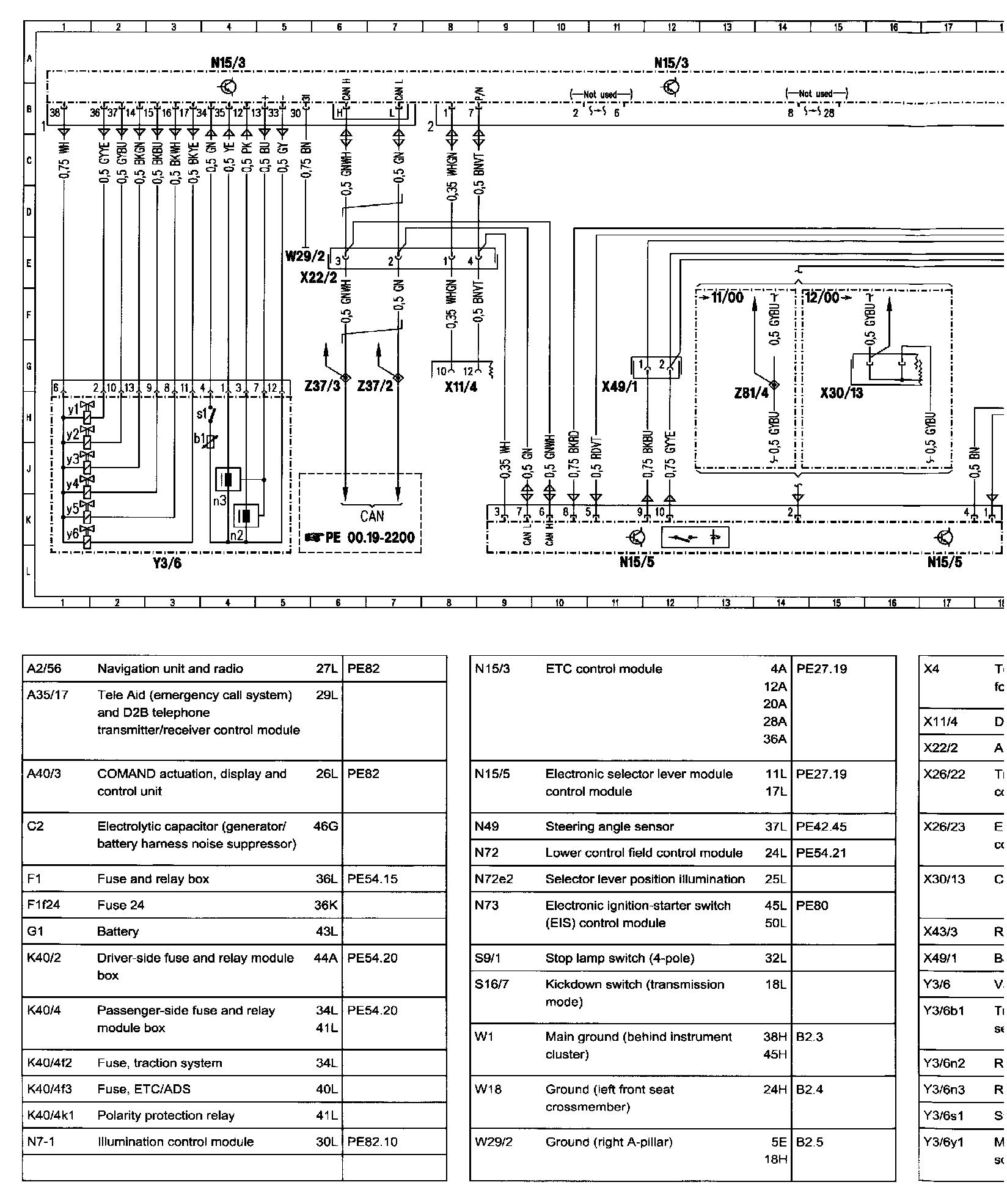

�m �bm ��m Automatic Transmission (AT) PE27.19-U-2000MA:

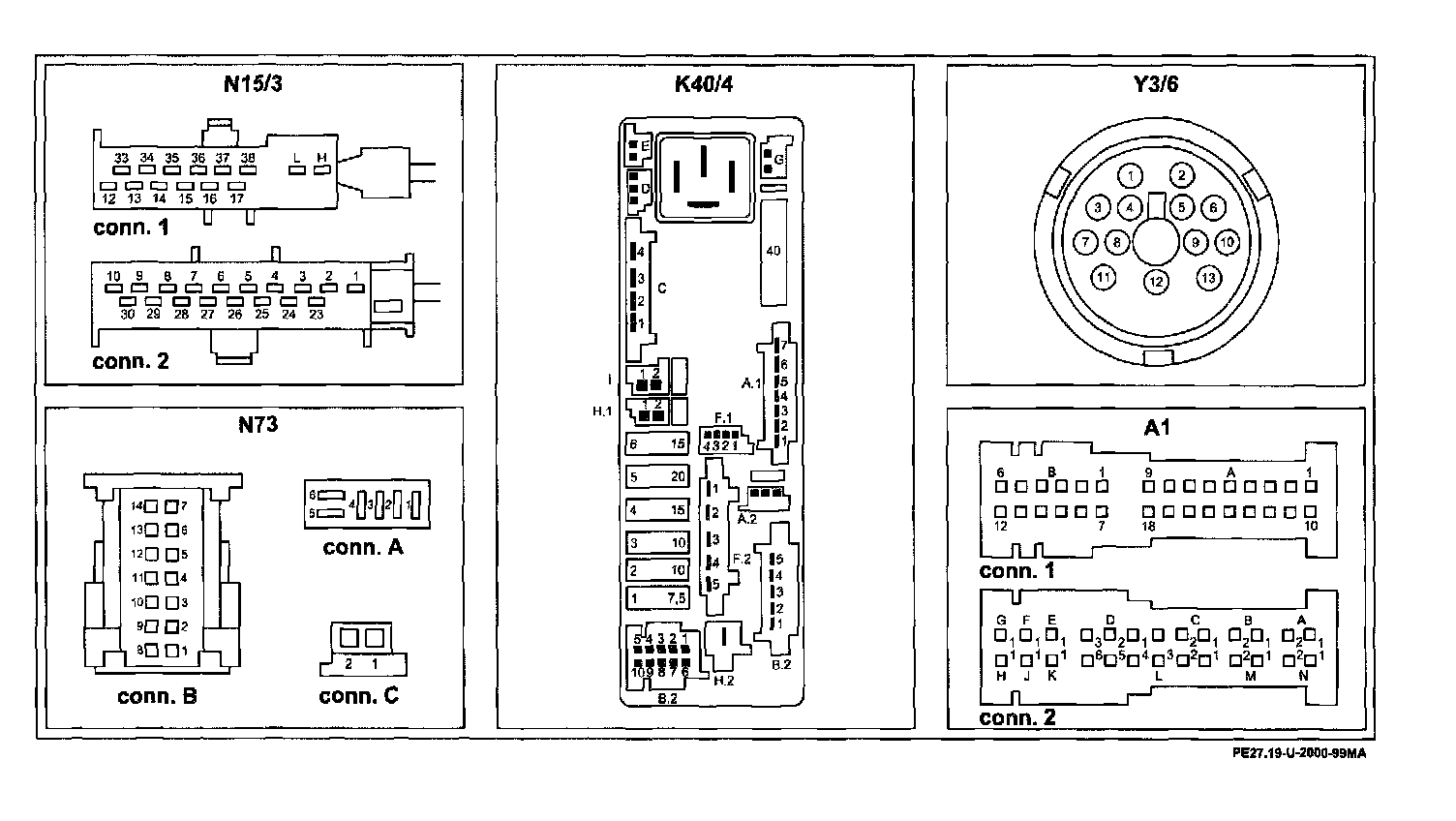

Connector Assignment:

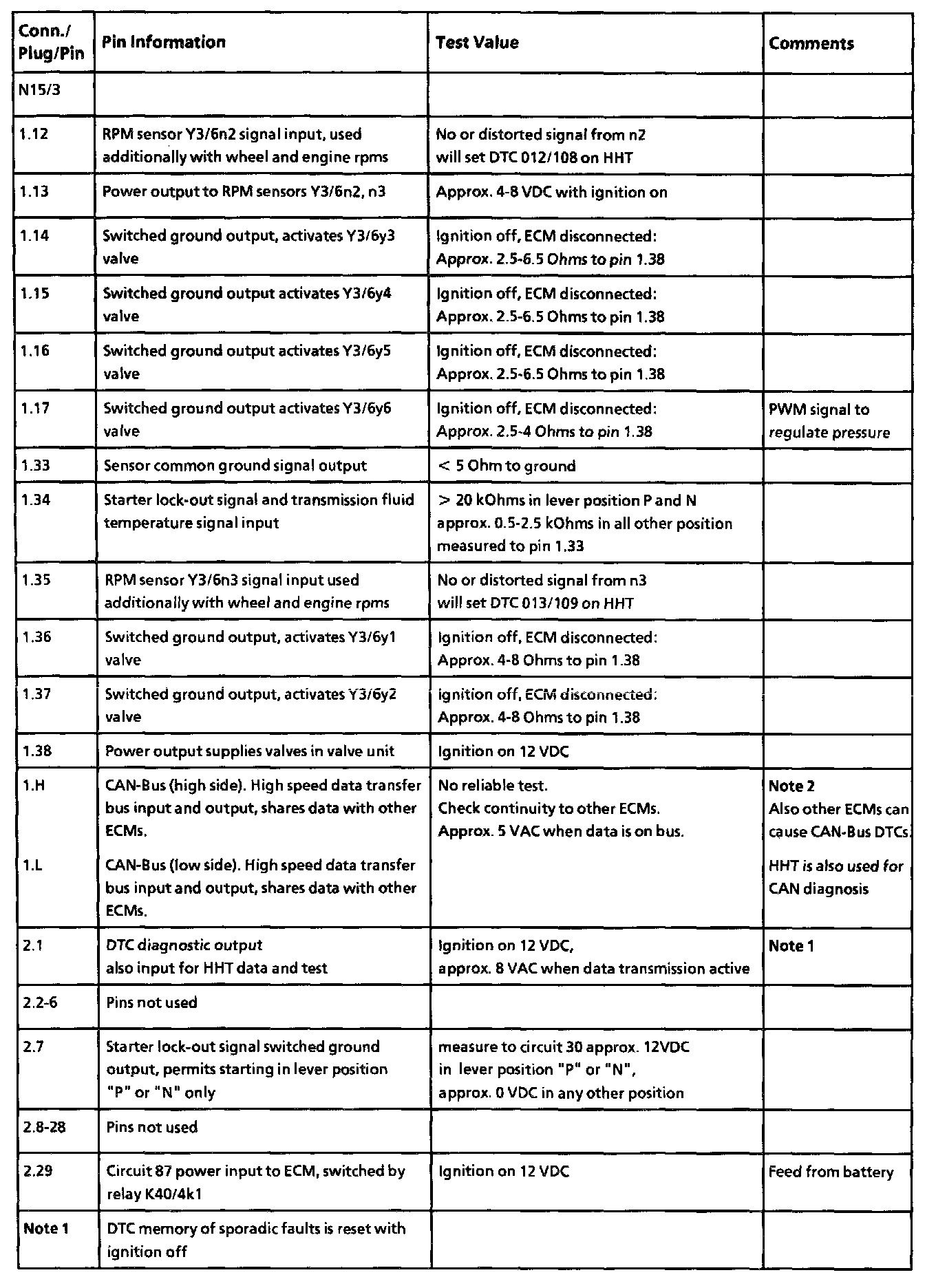

Pin Information, Part 1:

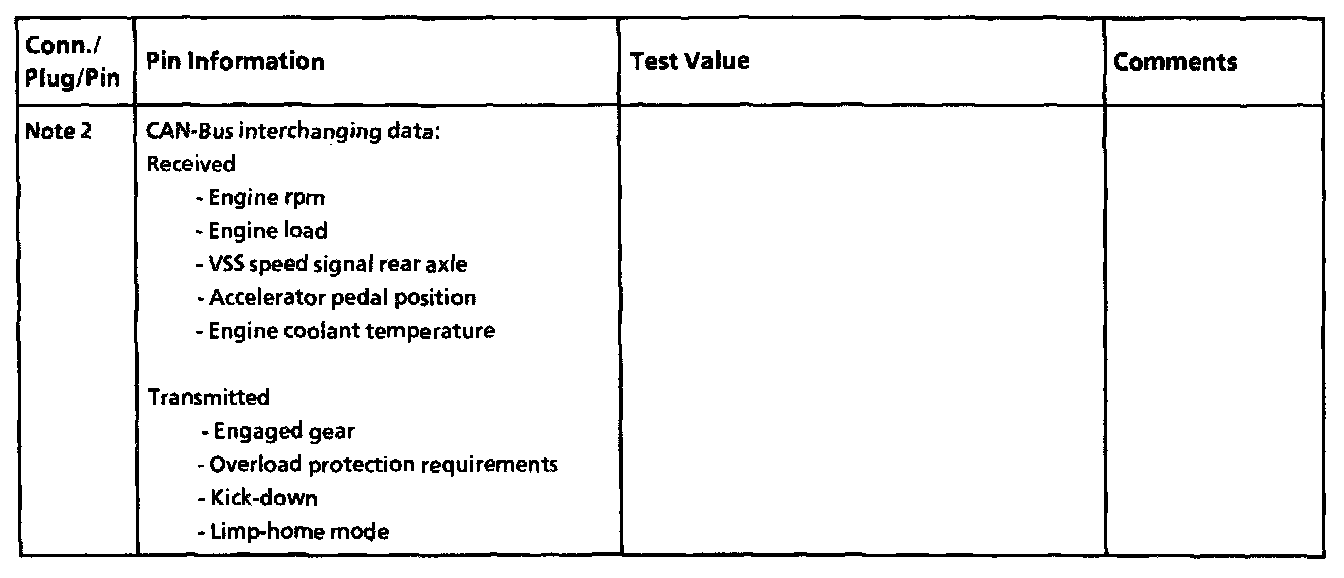

Pin Information, Part 2:
