Function Diagrams

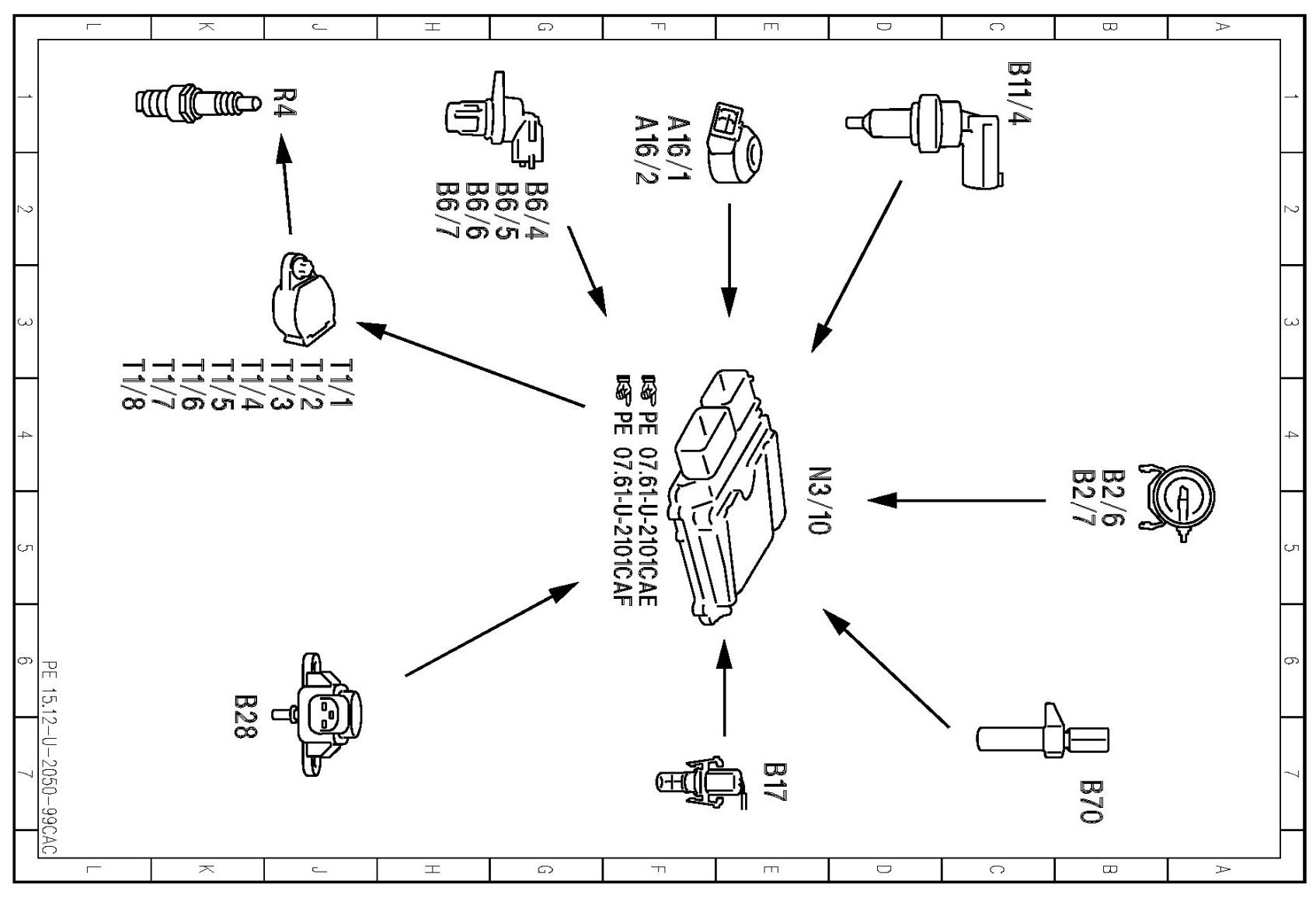

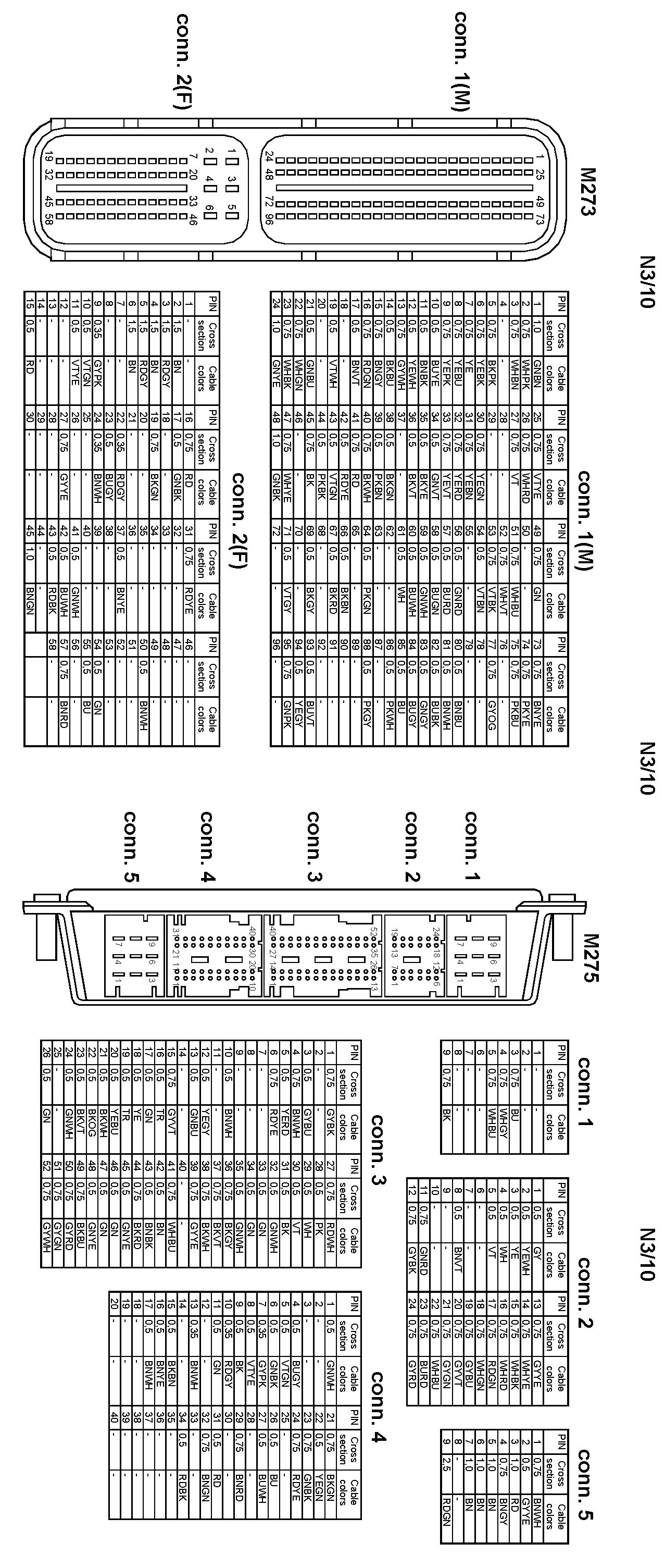

PE15.12-U-2050CAC Electrical Function Diagram For Ignition System

ENGINE 156 in MODEL 216
- as of Model Year 2009















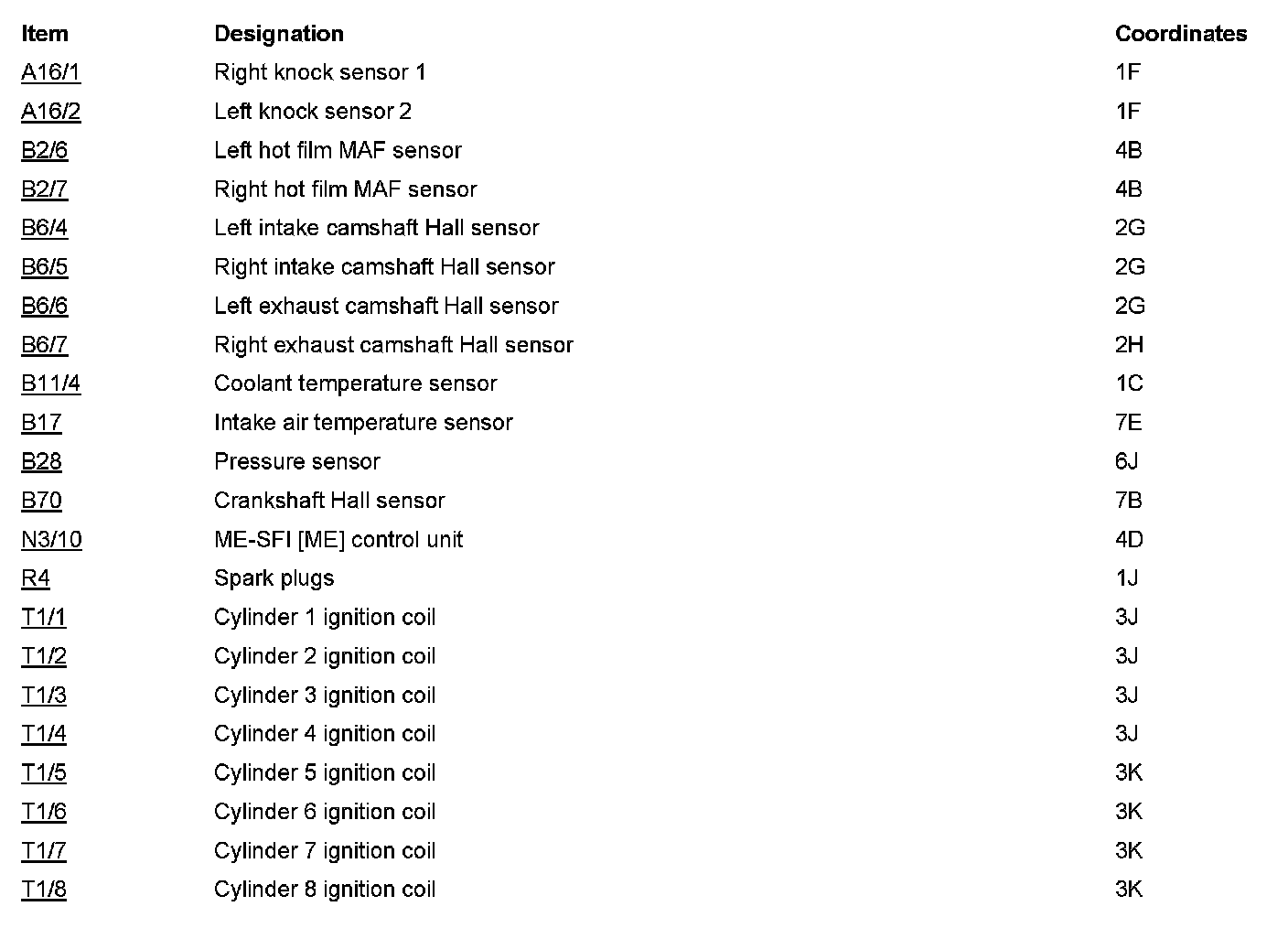

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
