Camshaft Position Sensor: Service and Repair
AR15.10-P-2000RMG Remove/install camshaft Hall sensor

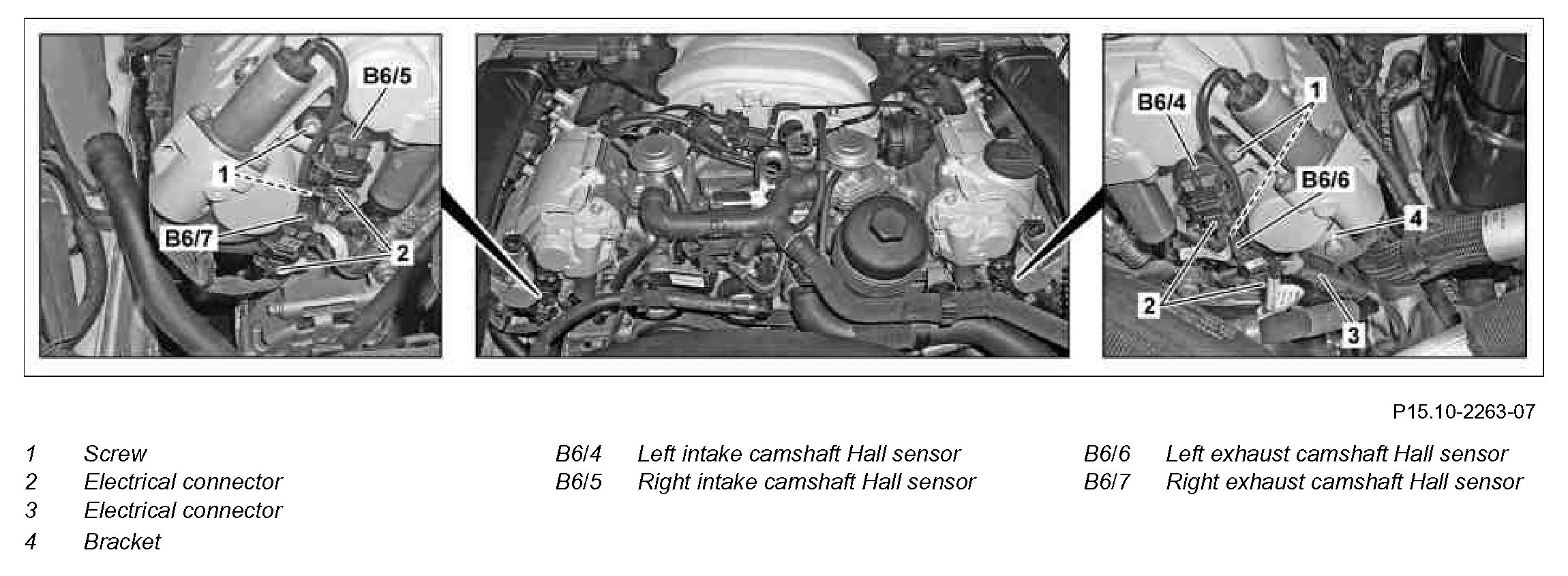

Component Identification:

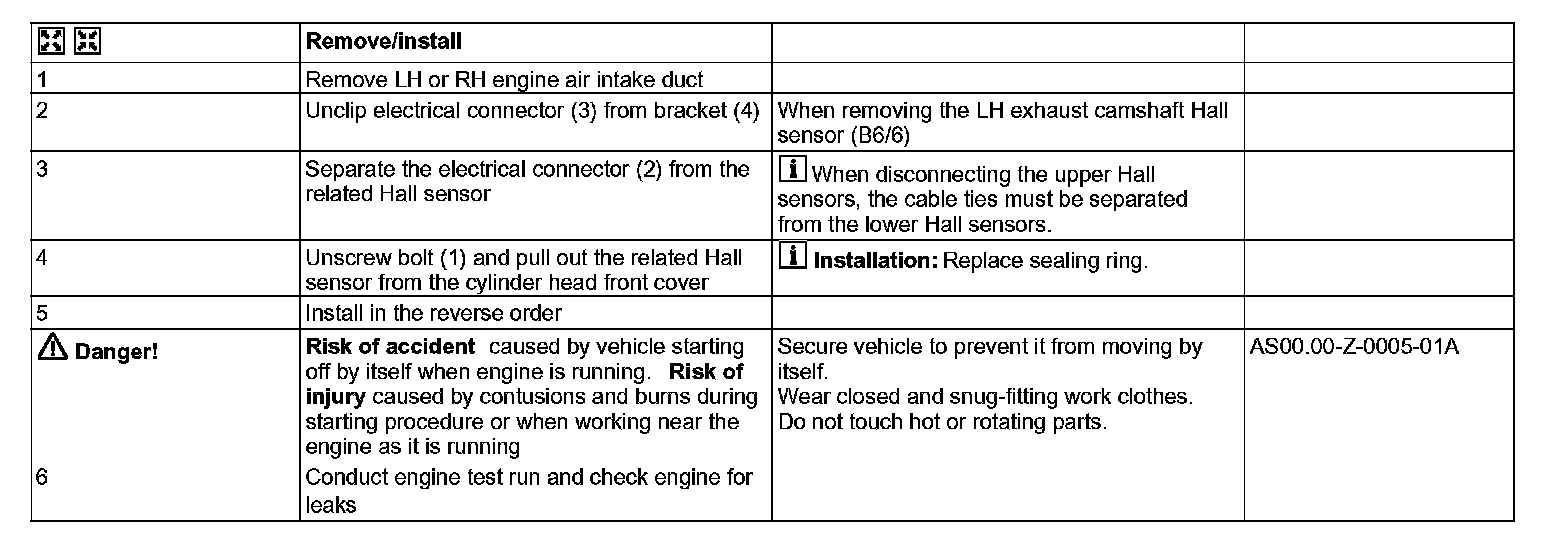

Steps 1-6:
