Coolant Temperature Sensor/Switch (For Computer): Service and Repair



AR15.60-P-3000RMG Remove/install temperature sensor

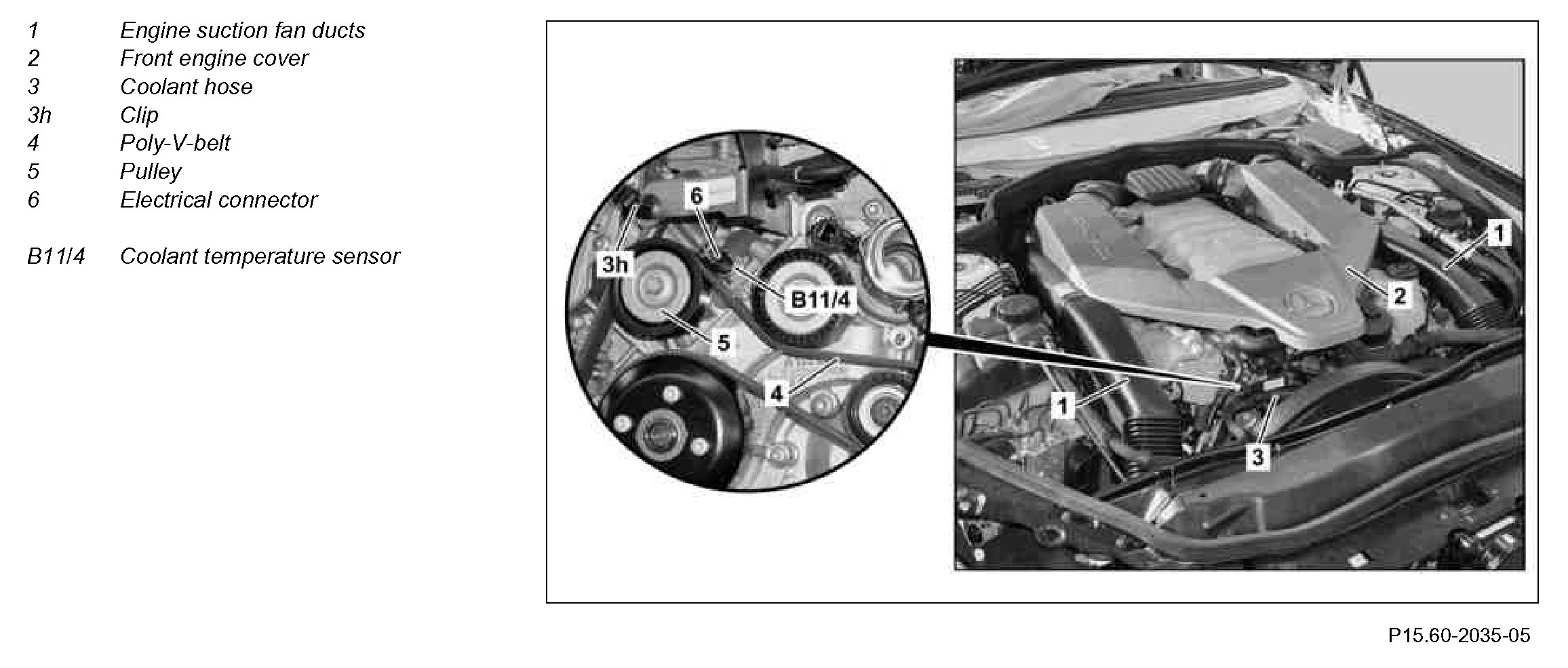

Component Identification:

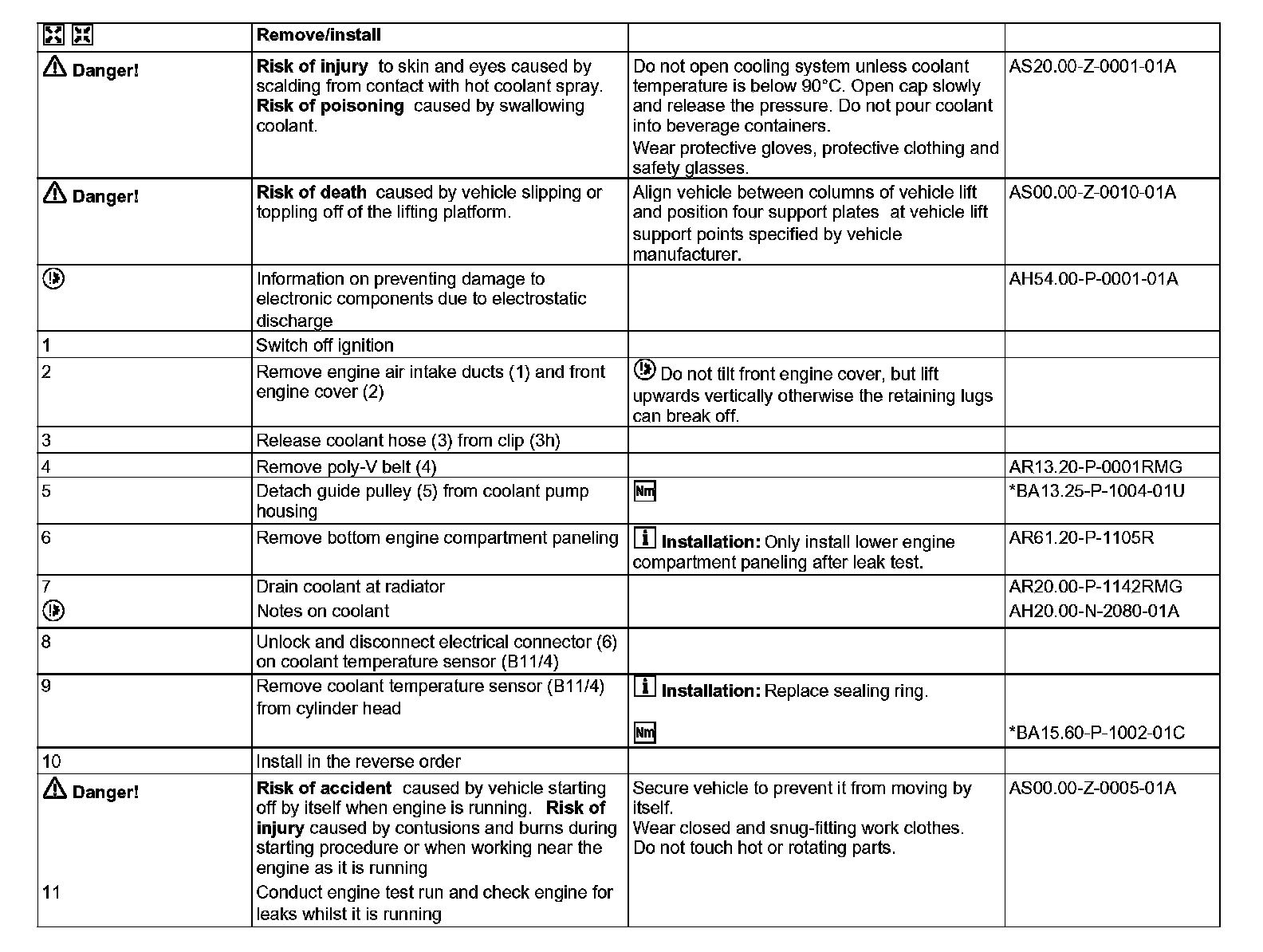

Steps 1-11:

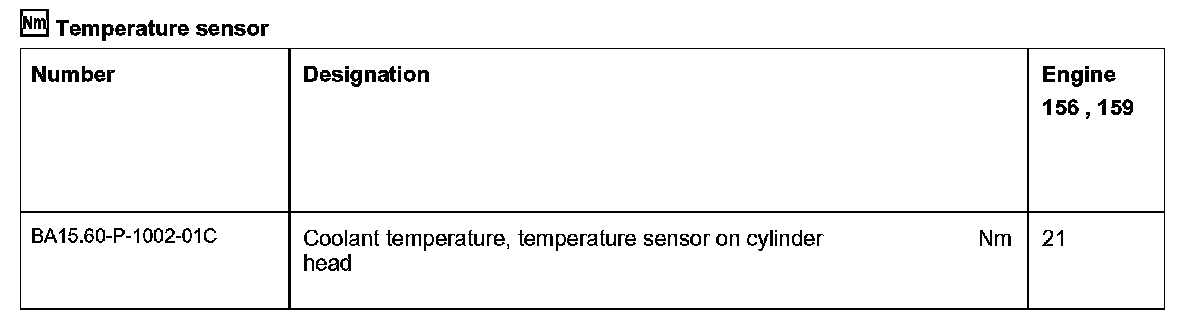

Temperature sensor:




Belt tensioning device:
