Crankshaft Position Sensor: Service and Repair
AR15.12-P-2133RMG Remove/install
crankshaft position sensor

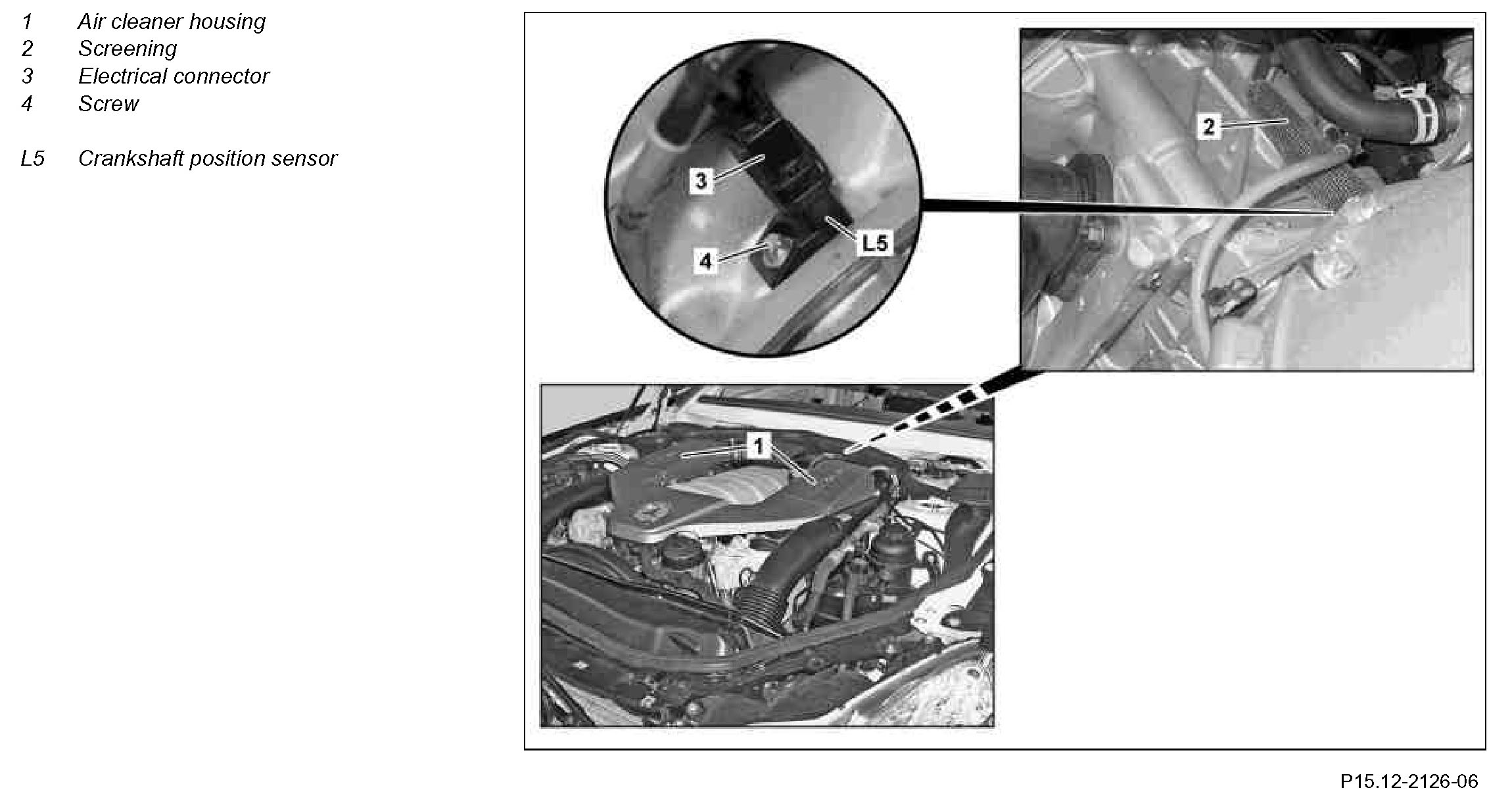

Component Identification:

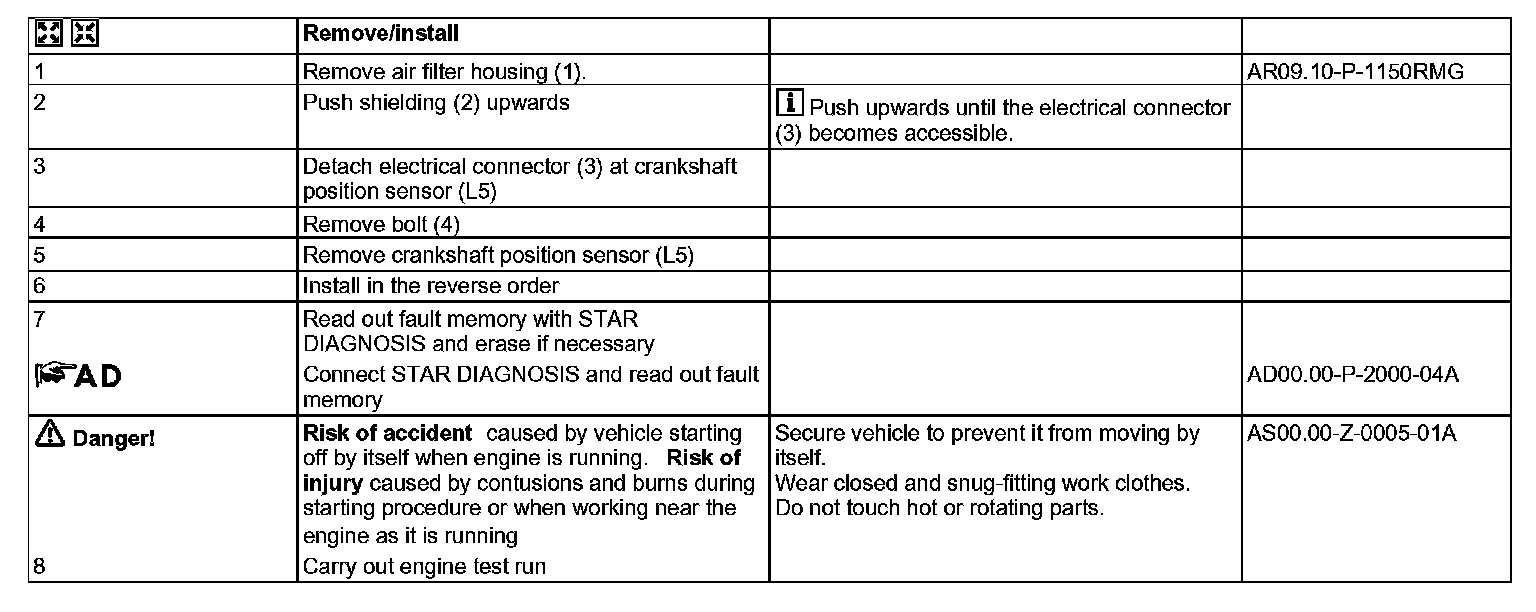

Steps 1-8:
