Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1988
>>
Merkur Scorpio V6-179 2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>

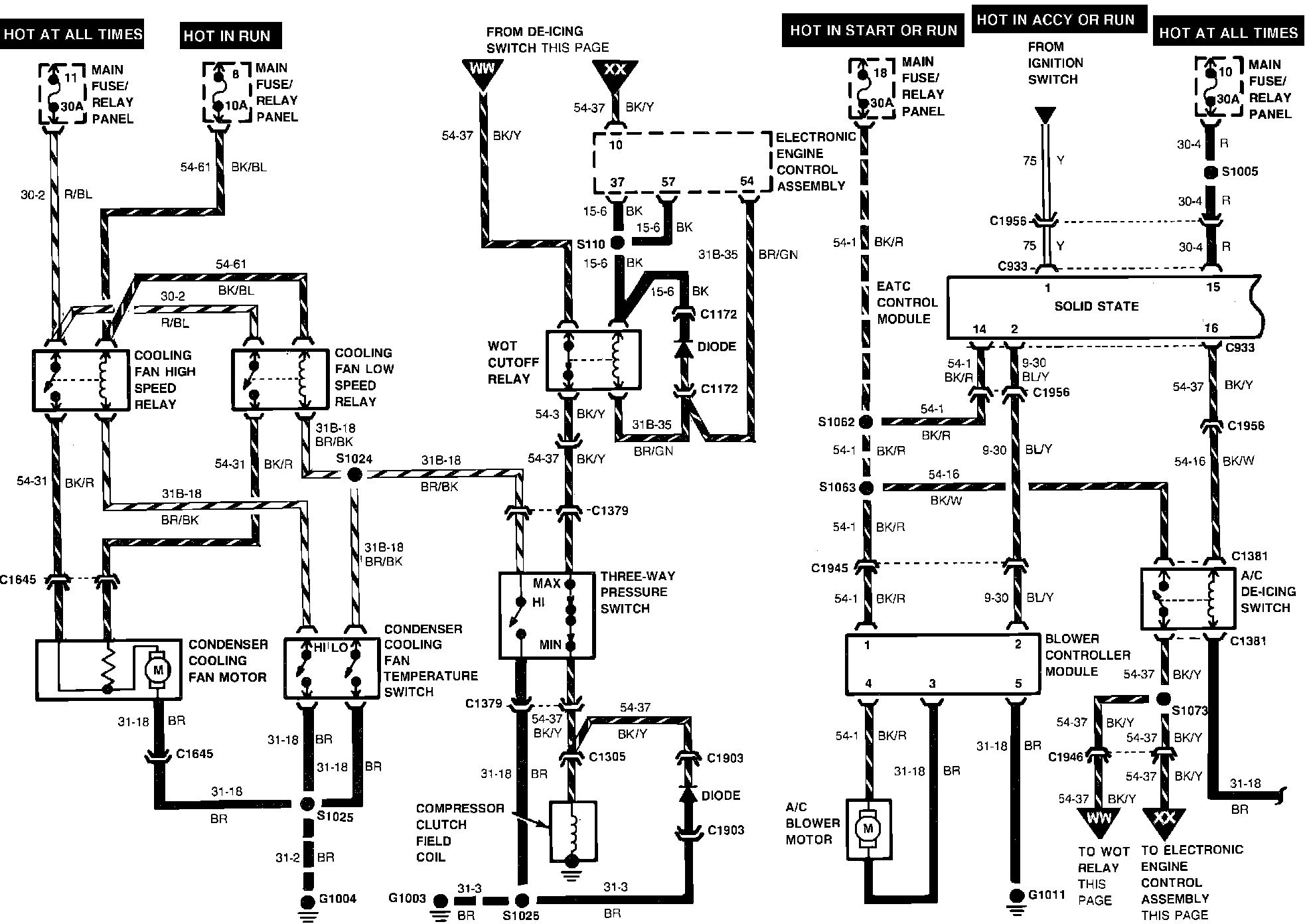

Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

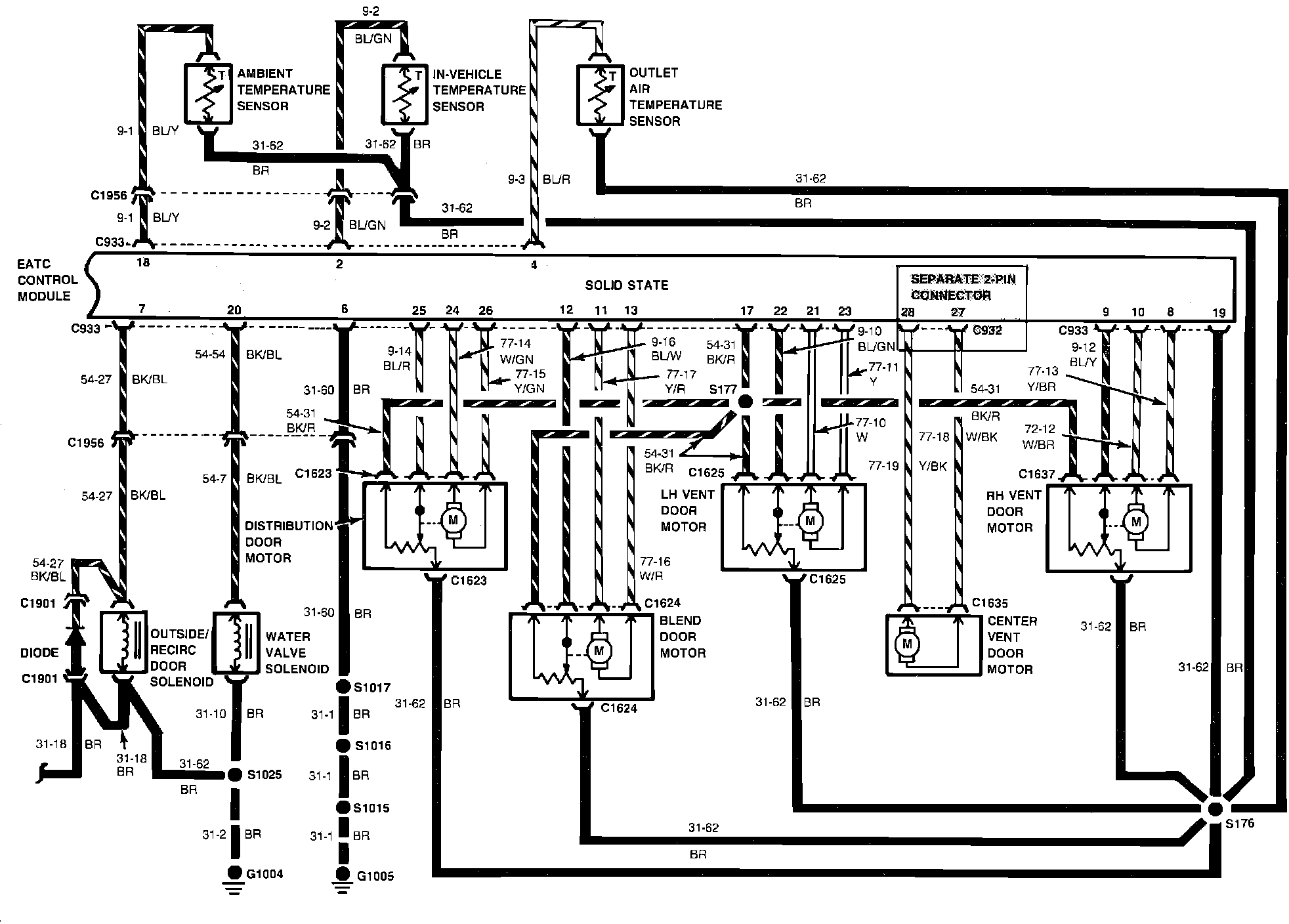

Electronic Automatic Temperature Control:
Electronic Automatic Temperature Control:
