Blower Motor: Service and Repair

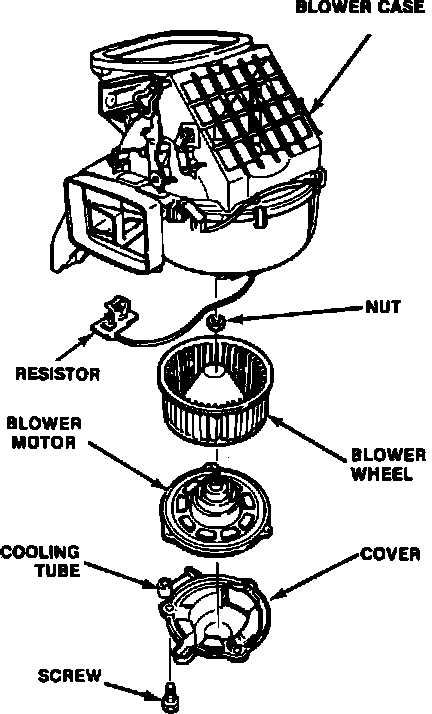

Fig. 14 Blower Motor Assembly:

1. Disconnect battery ground cable.
2. Remove passenger side instrument panel under cover.
3. Disconnect blower motor electrical connector, then remove three blower motor cover attaching screws, Fig. 17.
4. Remove cover, cooling tube and blower motor.
5. Reverse procedure to install.
