Home >> Mercury >> 1989 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering

Steering

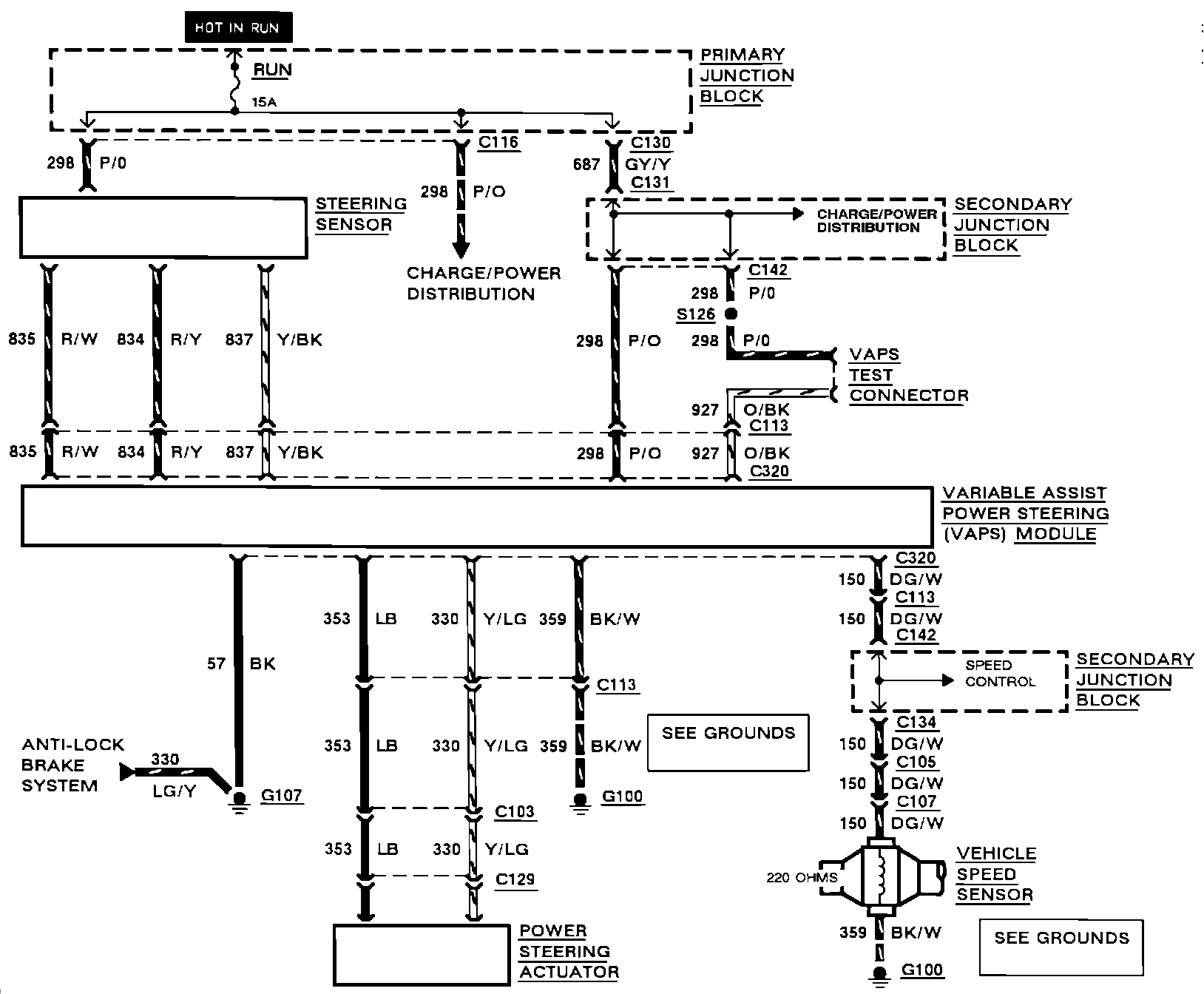

Power Steering (Except Supercharged Engine):
