Home
>>
Mercury
>>
1991
>>
Tracer L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Headlamp
>>
Headlamp Control Module
Headlamp Control Module

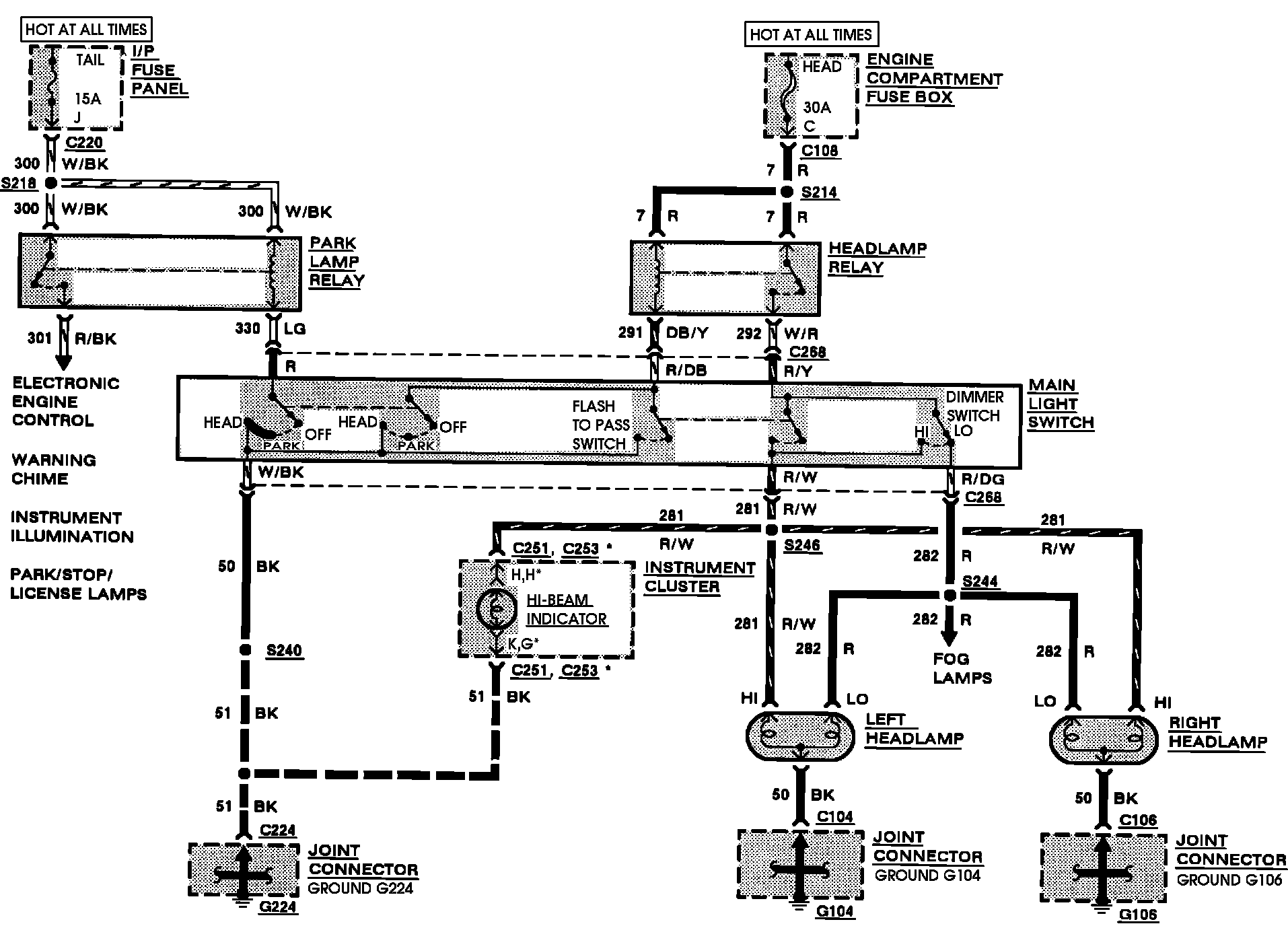

Headlamp. Models Less daytime Running Lamps:
